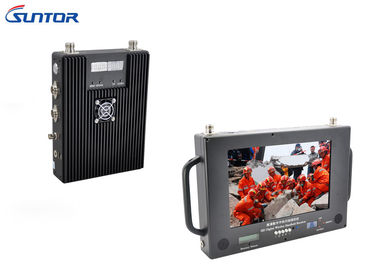

FHD and Video bodyworn Wireless High Definition Multimedia Interface Transmitter Long Range ground to ground NLOS

  • FHD and Video bodyworn Wireless High Definition Multimedia Interface Transmitter Long Range ground to ground NLOS
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST9502T
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Video FHD
Data RS232 Transparent Transmisson Bandwidth 2/3/4/5/6/7/8 MHz
IFFT 2K/8K Power Input DC12V/3.5A
Weight 2.2kg Size 210*308*48mm
High Light

cofdm hd wireless transmitter

,

wireless hd video transmitter
Leave a Message
Product Description





FHD and Video bodyworn Wireless High Definition Multimedia Interface Transmitter Long Range ground to ground NLOS



Introduction



ST9502T is a powerful COFDM bi-directional soldier body worn video and audio transmitting system with strong penetrating ability. It adopts H.264 technology supportting High Definition Multimedia Interface and CVBS video input. And it also support RS485 and RS232 data transmittng. 80ms latency making it very sutable for projects which beed real time transmission.

The system can access to USB flash disk, TF card for local audio and video synchronization storage. It is widely used in urban emergency response, anti-terrorism, border defense, armed fire, maritime, UAV and other units of the emergency map transmission demand. It supports ground to air, air to air, urban environment, forest environment and other multi-dimensional audio and video signal transmission.



Specification Sheet





Features



1)H.264 compressed encoding support 1080P@60fps
2)Support RS485 two way data transmitting
3)Support RS232 transparent transmission
4)Support High Definition Multimedia Interface, CVBS video transmission

  • Mini High Definition Multimedia Interface: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption)
  • AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption)

5)Two way voice communication
6)Latency: 80ms
7)RF power, frequency and bandwidth are adjustable
8)Support AES256 encryption
9)Support stable transmission during high-speed mobile



TX Parameters



Frequnecy Video: 300MHz~860MHz
Data: 223~235MHz
Power 37dBm (5Watts)
Video Coding H.264
Video Mini High Definition Multimedia Interface: 1080 60P/1080 50P/1080 30P/1080 25P/1080 24P/1080 60I/1080 50I/1080 30I/720 60P/720 50P/720 30P(self-adaption)
AV in: 720x480 60I(NTSC)/720x576 50I(PAL)(self-adaption)
Audio Mini HDM
AV in & Audio in
Antenna UHF
Data One-way transparent data transmission (OSD UART)
Serial port (Config UART) RS485
Modulation Convolution coding ratio: 1/2, 2/3, 3/4, 5/6, 7/8
Support QPSK/QAM16/QAM64
Support IFFT: 2K/8K
Guard Interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 2/3/4/5/6/7/8 MHz
Encryption: AES256
Power Input DC12V/3.5A
Weight 2.2kg



FHD and Video bodyworn Wireless High Definition Multimedia Interface Transmitter Long Range ground to ground NLOS 0

RX Parameters



Modulation Receiving Frequency Video: 300MHz~860MHz
Data: 223~235MHz
Frequency Band 2/3/4/5/6/7/8 MHz
Modulation COFDM (64QAM, 16QAM, QPSK)
Receiving Sensitivity ≤-100dBm @ 4MHz, ≤-97dBm @ 8MHz
Signal Strength Display on LCD
Encryption mode AES 256Bit/SUNTOR Basic Scrambling
System Receiving Polarization Vertical polarization, Dual antenna
Receiving Technology Space Diversity Technology
Filtering technologies Built-in high-performance cavity filter technology
Audio and video Compression format H.264(Embedded Audio)
HD Video Output High Definition Multimedia Interface
SD Video Output BNC
Audio Output Audio R+L Or High Definition Multimedia Interface
Image resolution HD1080P(1920*1080), compatibility 1080I, 720P, 480P and standard resolution
Ethernet Output IE or software to monitor the audio & video
Image frame rate Standard 24/50/60f/s compatible with other frame rate
Others Antenna Double 7.5db omni Antenna
Antenna Connectors 2 SMA ports
Power supply 1. AC220V
2. DC12V(Built-in 12V high capacity lithium battery)
LCD display 11.6 Inch
Size 270*225*150mm
Weight 4.5kg



FHD and Video bodyworn Wireless High Definition Multimedia Interface Transmitter Long Range ground to ground NLOS 1
