Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: C50HPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
COFDM |
Frequency: |
2.402 - 2.478 GHz |
RF Power: |
2W |
Transmission Distance: |
Air To Ground 40-70km |
Video Input: |
High Definition Multimedia Interface And Ethernet |
Duplex Data: |
Support SBUS/PPM/TTL |
System Latency: |
15-30ms |
Net Weight: |
Tx And Rx All Are Less Than 150g |
Modulation: |
COFDM |
Frequency: |
2.402 - 2.478 GHz |
RF Power: |
2W |
Transmission Distance: |
Air To Ground 40-70km |
Video Input: |
High Definition Multimedia Interface And Ethernet |
Duplex Data: |
Support SBUS/PPM/TTL |
System Latency: |
15-30ms |
Net Weight: |
Tx And Rx All Are Less Than 150g |

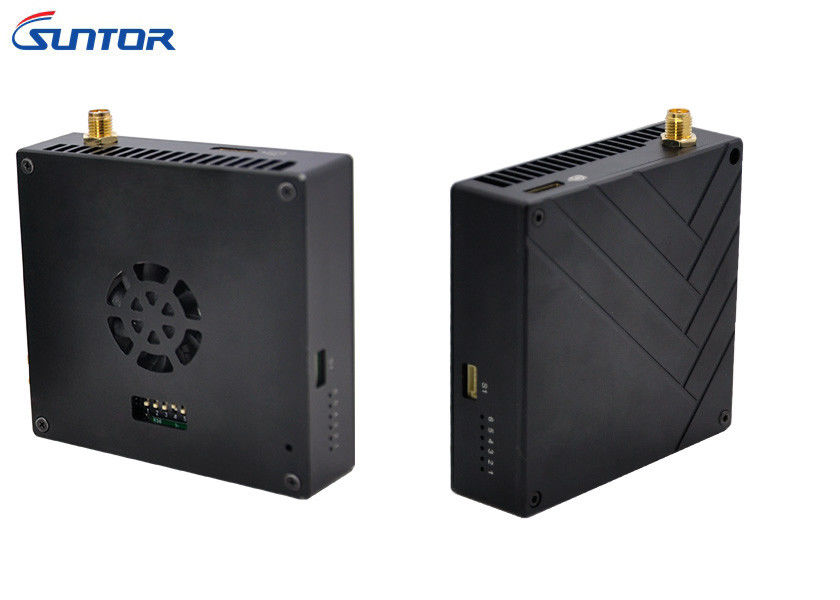

Heavy lift octocopter Drone Video Transmitter , High Definition Multimedia Interface Wireless Sender with high gain antenna
C50HPT Drone Video Transmitter & Receiver Specific...
Description
The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.
Features:
Applications:
Parameters
| Frequency | 2.4GHz(2.400-2.482GHz) |
| Wireless Fault-tolerant | Wireless Baseband FEC Forward Error Correction / Video MPEG Super Error Correction |
| TDMA Modulation | Downstream QPSK / Uplink BPSK |
| RF Transmitted Power | 33dbm(Air to ground 40-70km) |
| Power Consumption | TX: 12Watts/RX: 9Watts |
| Bandwidth | 2/4/6/8MHz |
| Link rebuild time | ≤1s |
| Latency | ≤15-30ms |
| Antenna |
1T1R TX: 5db(Omni Antenna) RX: 12db(Omni Antenna) |
| Video Color Space | Default 4:2:0/optional: 4:2:2/4:4:4 |
| Video Compressed Format | AVC adds H.265 feature TS stream |
| Communication Channel Encryption | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256 |
| Transmission Mode | point to point / point to multipoint |
| Transmission Distance | Air to ground 40-70km |
| Start-up time | 25s |
| Two-way function | Support SBUS/PPM/TTL |
| Power supply | DC 7- 18V |
| Temperature |
Operating temperature:-40°C ~ 85°C Storage temperature:-55°C ~ 100°C |
|
Interface (same interface on TX & RX) |
1. 1080P/60 High Definition Multimedia Interface Mini RX(SDI on request) |
| 2. 100Mbps Ethernet Port | |
| 3.Ethernet Port convert to TTL serial port (Support TCP/UDP) | |
|
4. RS232 Serial Port ( 12V Electrical Level, Resistant to 3000V pulse voltage for 60 seconds and anti-static protection) |
|
|
5. RS422/485 Serial Port (Resistant to 3000V pulse voltage for 60 seconds and anti-static protection) |
|
| 6. SBUS/PPM Serial Port for Extending Application | |
| 7. Audio(Trumpet) S2 Port for Extending Application | |
| 8. Power Input XT30 (DC7-18V) | |
| 9. Antenna SMA RF | |
| Indicator Light | High Definition Multimedia Interface input/output indicator |
| Transmitting and receiving WL indicator | |
| Video board indicator | |
| Power | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Dimension | 76x73x24mm |
| Weight | TX: 146g, RX: 146g |
