Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: C50HPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Distance: |
40-70km |
Frequency: |
2.4Ghz |
Weight: |
TX: 208g, RX: 100g |
Video Input: |
High Definition Multimedia Interface/SDI |
Video Resolution: |
HD 1080P |
Dimension: |
24x73x76mm |
Working Temperature: |
-40℃~+85℃ |
Casing Design: |
CNC Technology |
Distance: |
40-70km |
Frequency: |
2.4Ghz |
Weight: |
TX: 208g, RX: 100g |
Video Input: |
High Definition Multimedia Interface/SDI |
Video Resolution: |
HD 1080P |
Dimension: |
24x73x76mm |
Working Temperature: |
-40℃~+85℃ |
Casing Design: |
CNC Technology |

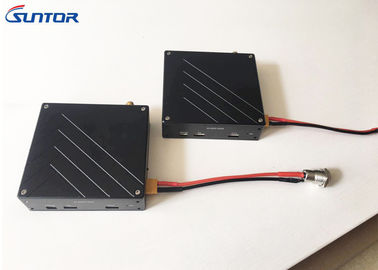

HD Long Range Helicopter Video Transmitter Narrow Bandwidth 2MHz - 8MHz Optional
C50HPT Drone Video Transmitter & Receiver Specific...
1. Introduction
C50HPT is a new design 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support full HD 1080P H.265 encoding format and High Definition Multimedia Interface/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.
2. Features
3. Paramters
| Wireless | |
| Frequency Range | 2.4GHZ (2.400-2.482GHZ) |
| Bandwidth | 1-8Mhz |
| RF Power | 33dBm (Air to Ground 40-70km) |
| Error Detection | LDPC FEC |
| Latency | ≤15-30ms |
| Receive Sensitivity | -100dBm ~ -90dBm |
| Video | |
| Input/output | Onboard High Definition Multimedia Interface mini TX/RX or FFC Convert to High Definition Multimedia Interface-A TX/RX |
| Color Space | Default 4:2:0 optional: 4:2:2/4:4:4 |
| Compressed Format | AVC, H.265, TS |
| Interface | |
| HD media Interface | High Definition Multimedia Interface mini/Flexible Flat Cable(FFC) |
| Video Input/output Interface | High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX |
| Antenna |
1T1R TX: 7db (25cm Omni Antenna) RX: 10db (Omni Antenna) |
| Transmitter Interface | 1080P 60 High Definition Multimedia Interface Mini RX |
| 100Mbps Ethernet Port | |
| S1 TTL bidirectional serial port | |
| S2 TTL bidirectional serial port | |
| SMA RF | |
| Receiver Interface | 1080P 60 High Definition Multimedia Interface Mini RX |
| 100Mbps Ethernet Port | |
| S1 TTL bidirectional serial port | |
| S2 TTL bidirectional serial port | |
| SMA RF | |
| Indicator Light | High Definition Multimedia Interface input/output indicator light |
| Transmitting and receiving indicator light | |
| Video board indicator light | |
| Power light | |
| Interface | Power input interface × 1 |
| Antenna interface × 1 | |
| RS232 Bidirectional Port × 1(With isolation protection, resistance to 3000V pulse voltage) | |
| Ethernet to USB / RJ45 on Windows × 1 | |
| System | |
| Start-up time | 25s |
| Power Consumption | TX:10Watts/Rx:7Watts |
| Power supply | DC 7- 18V (DC16.8V advised) |
| Transmission Mode | point to point / point to multipoint |
| Transmission Distance | Air to ground 40-70km |
| Adjustment mode of bitrate | Software adjustmentt |
| Security | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256 |
| Total delay of the system | 15-30ms of 1080P60/720P60 coding and decoding. |
| Two-way function | Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module. |
| Physical | |
| Dimension | 24mm×73mmx76mm |
| Weight | Tx: 208g, Rx: 100g |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | 55°C ~ 100°C |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
4. FAQ
Q1. Can I Have A Sample Order For Wireless Video COFDM Transmitter?
A: Yes, We Welcome Sample Order To Test And Check Quality. Mixed Samples Are Acceptable.
Q2. What About The Lead Time?
A: Sample Needs 5-7 Days, Mass Production Time Needs 1-2 Weeks For Order Quantity More Than
Q3. Do You Have Any MOQ Limit For COFDM Transmitter Order?
A: Low MOQ, 1pc For Sample Checking Is Available
Q4. How Do You Ship The Goods And How Long Does It Take To Arrive?
A: We Usually Ship By DHL, UPS, FedEx Or TNT. It Usually Takes 3-5 Days To Arrive. Airline And Sea Shipping Also Optional.
Q5. Is It OK To Print My Logo On COFDM Transmitter Product?
A: Yes. Please Inform Us Formally Before Our Production And Confirm The Design Firstly Based On Our Sample.
