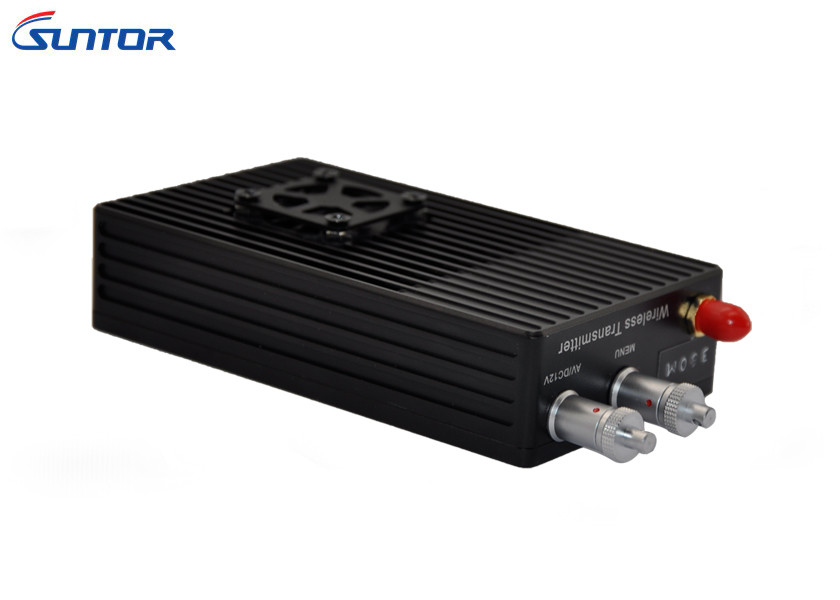

Long range NLOS robot AV UHF Wireless COFDM Transmitter and receiver system

  • Long range NLOS robot AV UHF Wireless COFDM Transmitter and receiver system
  • Long range NLOS robot AV UHF Wireless COFDM Transmitter and receiver system
  • Long range NLOS robot AV UHF Wireless COFDM Transmitter and receiver system
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6215SH
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Frequency 300-900Mhz RF Power 1.5Watts
Modulation COFDM(64QAM, 16QAM, QPSK) Channel Bandwidth 2//4/6/8MHz Adjustable Manually
Encryption AES 128Bit Video Input CVBS
Weight 285g Size 115*564*26mm (L×W×H)
Power DC 7.2~12V
High Light

long range video transmitter

,

wireless hd video transmitter
Leave a Message
Product Description

Long range NLOS robot AV UHF Wireless COFDM Transmitter and receiver system





Data Sheet



User Manual





Introduction



ST6215SH is designed specially for Robot, USV and UGV to tranmsitting video and audio in barriers environment. With UHF frequency 300-900Mhz, advanced COFDM modulation technology and relative narrow-band frequency(2/ 4/ 6/ 8MHz) ST6215SH have strong penetrate ability for SD video. It support both PAL ad NTSC tw format video.





Main Features:



Frequency: 300-900Mhz(Other frequency on request)



Modulation: COFDM



Encryption: AES128bit



NLOS Distance: 200-500meters



Function: Video and Audio



Size: 115*64*26mm



Weight: 285g



Parameters:



RF Modulation Working frequency 300MHz～900MHz(Other frequency on request)
Transmitting Power

ST6210SH: 1Watts

ST6215SH: 1.5Watts
Modulation COFDM(64QAM, 16QAM, QPSK)
Channel Bandwidth 2//4/6/8MHz adjustable manually
Error correcting mode FEC@Viterbi (1/2, 2/3, 3/4)
Guard Interval 1/32, 1/16, 1/8, 1/4
Encryption mode AES 128Bit/SUNTOR Basic Scrambling
Code Stream 1.5Mbps～12Mbps
BER ≤10-6
Transmission Distance

Air to Ground on UAV

ST6210SH: 5-15km

ST6215SH: 5-20km

Higher vertical flight height, longer transmission distance

NLOS(Earth to Earth with Barriers): 200-500meters
Audio and Video Compression format H.264(Embedded Audio)
SD Format

PAL 720 x 576

NTSC 720 x 480
Video Input Connectors CVBS
Audio Input Connectors CVBS
Image Frame Rate 25 f/s
Antenna Frequency 300MHz-2.4GHz
Length 39cm
Gain 2.5dBi
Impedance 50Ω
SWR <1.5
Connector SMA
Weight 45g
Wind Loading Rating 284m/s
Others Battery Powered External Power In: DC 7.2~12V
Frequency Modulator Display and Manually Adjust Parameters( Frequency, bandwidth, Video Format, AES)
Power switch ON/OFF
Size 115*564*26mm (L×W×H)
Weight 285g





Details:



Long range NLOS robot AV UHF Wireless COFDM Transmitter and receiver system 0
