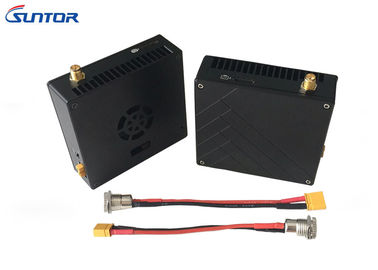

High power Mini Video Transmitter with two way video data transmission function

  • High power Mini Video Transmitter with two way video data transmission function
  • High power Mini Video Transmitter with two way video data transmission function
Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST50HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency 2.4GHz
RF Transmitted Power 33dBm Resolution Full HD 1080P
Transmission Distance Air To Ground 50 Km Bandwidth 1-8Mhz
Encryption AES 125/256 Transmission Mode Point To Point / Point To Multipoint
High Light

uav video transmitter

,

wireless video transmitter hdmi
Leave a Message
Product Description

High power small video transmitter with two way video data transmission function



Description

ST50HPT is a mini HD Video and Duplex data transmission COFDM system for UAV. It develops CABAC (H.264+H.265) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground (40-70km) and low delay(12-25ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.



ST50HPT Specs.pdf



Features

  • Working Temperature: -40℃—+85℃
  • Support SBUS/PPM/TTL/232/485
  • Video: Video sources self-adaptive(Max 1080P), Support High Definition Multimedia Interface Input/output
  • Support Video and Duplex Data
  • Compatible with different brand flight controller and remote controller
  • 100Mbps Ethernet for option
  • Matching with our TPlayer software (low latency software decoder) to display video on PC.



Frequency 2.4GHz (2.402-2.478GHz) Adjustable
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power

ST5HPT: 400mW (Air to ground 5km)

ST11HPT: 1Watt (Air to ground 10km)

ST30HPT: 1.5Watts (Air to ground 30km)

ST50HPT: 2Watts (Air to ground 40-70km)


Frequency Bandwidth 2/8/20MHz Adjustable
Receive Sensitivity -100dbm/95dbm/90dbm
Transmitter Receiver Interface Power input interface × 1
Antenna interface × 1
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1 Software adjustment
SMA RF× 1
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Antenna 1T1R
Video Input/output Interface High Definition Multimedia Interface mini Tx/ Rx, or transform FFC to High Definition Multimedia Interface-A Rx/ Tx Support the voice function
Video Compressed Format H.264 +H.265 TS Support the bitrate output
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Start-up time < 30s
Total delay of the system 12-25ms of 1080P 60/ 720P 60 coding and decoding
Two-way function Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module Optional
Power supply DC 12V DC7-18 V Optional
Total Power Dissipation

Transmitter: 10Watts

Receiver: 7Watts

 Maximum value
Temperature Range Operating temperature:-40°C ~ 85°C
Storage temperature:-55°C ~ 100°C
Indicator Light High Definition Multimedia Interface input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
High Definition Multimedia Interface High Definition Multimedia Interface mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 24mm×73mmx76mm
Net Weight Tx: 208g, Rx: 100g



Application:
As its miniature volume, precision design, lightweight and easy to carry, suitable used in short distance and long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.
