Product Details
Place of Origin: China
Brand Name: Suntor
Certification: CE
Model Number: CD15NMT
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: contact us
Packaging Details: Packing box
Delivery Time: in 12 days
Payment Terms: T/T
Supply Ability: 5000PCS/month
Operating Frequency: |
1428~1448MHz Or 806~826MHz |
Transmission Distance: |
15KM |
Bandwidth: |
3/5/10/20 MHz |
Sensitivity: |
-103 @ 10MHz |
Transmit Power: |
2W |
Safe: |
AES128 |
Power Supply: |
DC12~16V |
Size: |
103.4*61.4*22 Mm |
Operating Frequency: |
1428~1448MHz Or 806~826MHz |
Transmission Distance: |
15KM |
Bandwidth: |
3/5/10/20 MHz |
Sensitivity: |
-103 @ 10MHz |
Transmit Power: |
2W |
Safe: |
AES128 |
Power Supply: |
DC12~16V |
Size: |
103.4*61.4*22 Mm |

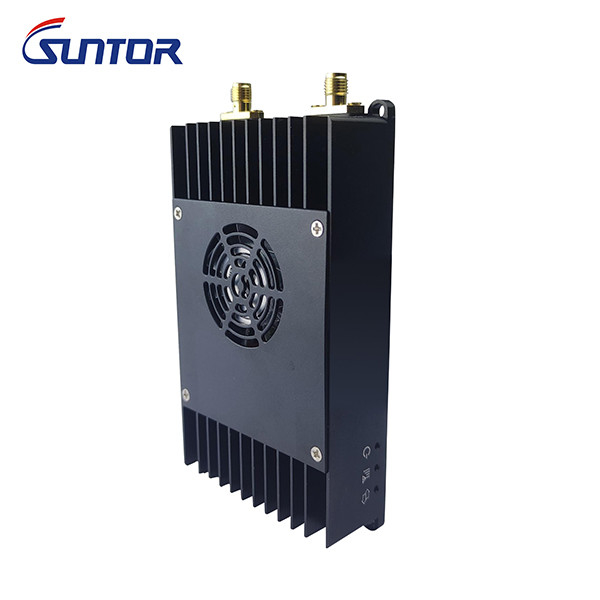

15km Ethernet and Series port Wireless UAV Data Link For Drone
CD15NMT Drone Video Transmitter & Receiver Specifi...
1. Fast details of Wireless UAV Data Link
Wireless Transmit Power: 10W
Transmission distance: 15KM can be choose.
TWO-Way broadband wireless link device
Operation Frequency: 1428~1448 MHz
Bandwidth: 3/5/10/20 MHz
Modualtion mode: QPSK/QAM16/AQM64
2. Description of Wireless UAV Data Link
CD15NMT Wireless Link device realize long-distance two-way wireless video, audio, data transmission,The maximum air-to-ground transmission distance can reach 15km. The CD15NMT device provides multiple service interfaces, including 2 Ethernet ports, 3 serial ports, and audio input and output interfaces.
The device automatically adjusts the wireless transmission rate according to the service data stream it carries, and the smaller the amount of service data it carries, the farther the transmission distance will be under the same conditions.
Therefore, when using the device to transmit IP Camera video data, the wireless transmission distance can be improved by setting the appropriate reduction of the IP Camera video encoding bitrate.
3. Specification of Wireless UAV Data Link
| Using technology |
OFDM
|
| Service interface |
2 Ethernet ports, 3 RS232 serial ports, audio input and output ports
|
|
Dual antennas |
SMA surface, ANT1 main antenna working in transceiver mode, ANT2 auxiliary antenna working in receive mode
|
|
Wireless working Frequecy |
1428~1448MHz or 806~826MHz,Supports automatic frequency hopping in frequency bands
|
|
Wireless bandwidth |
3MHz, 5MHz, 10MHz, 20MHz, all nodes share working bandwidth, the maximum sharing rate of the system is 30Mbps.
|
|
Modulation mode |
QPSK/QAM16/QAM64 automatic adaptation
|
|
Networking mode |
point-to-point, point-to-multi point star networking
|
|
Wireless Transmit Power |
2W
|
|
The sensitivity of the node receive |
10MHz bandwidth-103
|
|
Power supply |
DC12~16V,The average power consumption of the video transmitter is less than 12W, and the average power consumption of the video receiver is less than 10W.
|
4. Our Services for Wireless UAV Data Link
1, 16 years experience in wireless video data transmitter
2. Excellent pre-sale and after-sale Technical team
3. High quality with competitive price
4. Fast feedback and fast delivery
5. OEM and customized service supported
6. Strong development and technical team
5. FAQ
Q1. Can I have a sample order for Wireless UAV Data Link?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 5-7 days, mass production time needs 1-2 weeks,will based on your quantity
Q3. Do you have any MOQ limit for Wireless UAV Data Link?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT.
Q5. Is it OK to print my logo on Wireless UAV Data Link?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
