HDMI 5KM 2.4GHz Wireless Video Transmitter Drone Data Link Radios

Place of Origin China
Brand Name Suntor
Certification CE
Model Number ST5HPT
Minimum Order Quantity 1SET
Price contact us
Packaging Details Packing box
Delivery Time in 12 days
Payment Terms T/T
Supply Ability 5000SET/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Frequency 2.4GHz Video Input HDMI
Resolution Full HD 1080P/60 Latency 15~30ms
Distance Air To Ground 5km RF Transmit Power 500mW
Size 76*48*20mm Weight 93g
High Light

Drone Wireless Video Transmitter

,

TTL Drone Data Link

,

5KM Drone Data Link

Leave a Message
Product Description

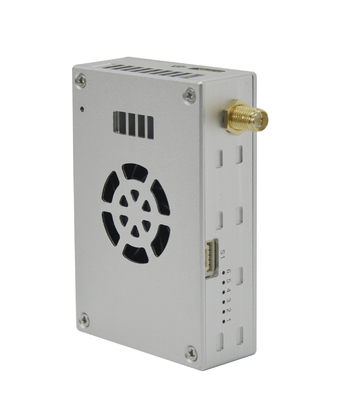

HDMI 5KM 2.4GHz Wireless Video Transmitter Drone Data Link Radios



1. Fast details of HDMI Drone Data Link Radios



Video Input: HDMI/TTL/Ethernet port



Resolution: Full HD 1080P/60



Frequency: 2.3Ghz-2.5Ghz



Distance: Air to ground 5km



Latency: ≤15-30ms



Duplex Data Transmission: SBUS/TTL/MAVLINK Telemetry



Small Dimension: 76*48*20mm



Light Weight: TX 93g/RX 93G







2. Description of HDMI Drone Data Link Radios



     ST5HPT is a mini HD Video and Data transmission COFDM system for UAV. It develops CABAC (H.264) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(15-30ms) transmission.



     The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.







3. Specification of HDMI Drone Data Link Radios



Frequency

Three frequency for your option 2.3GHz/2.4GHz/2.5GHz

2.4GHz(2402MHz-2482MHz)

Error Detection LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power 500mW (Air to ground 5km)
Power Consumption TX: 7Watts
RX: 6Watts
Frequency Bandwidth 4MHz
Latency ≤15-30ms
Transmission Rate 3-5Mbps
Receive Sensitivity -100dbm@4Mhz,
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Antenna 1T 1R
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format H.264
Bitrate Software adjustment
Encryption AES 128
Transmission Distance Air to ground 5km
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/TTL/MAVLINK Telemetry
Power supply DC12V (support DC 7- 18V)
Interface 1080P/60 HDMI Mini RX x1
100Mbps Ethernet to USB / RJ45 on Windows × 1
S1 TTL bidirectional serial port x1
Power Input x1
Indicator Light HDMI input/output Status
Transmitting and receiving
Video board working Status
Power
HDMI HDMI mini/Flexible Flat Cable(FFC)
Temperature Range Operating temperature:-40°C ~+ 85°C
Storage temperature:-55°C ~+ 100°C
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 76×48×20mm
Weight Tx: 93g/Rx: 93g





4. Our service



4.1. 16 years experience in video delivery infrastructure solutions


4.2.  Excellent pre-sale and after-sale Technical team


4.3.  High quality with competitive price


4.4.  Fast feedback and fast delivery


4.5.  OEM supported





5. Interface of HDMI Drone Data Link Radios



HDMI 5KM 2.4GHz Wireless Video Transmitter Drone Data Link Radios 0



6. FQA



Q1. What about the lead time?

A1: Sample needs 5-7 days, mass production time needs 1-2 weeks for order quantity more than



Q2. Can I have a sample order for HDMI Drone Data Link Radios?

A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q3. Do you have any MOQ limit for COFDM Transmitter order?

A3: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. Is it OK to print my logo on COFDM Transmitter product?

A4: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
