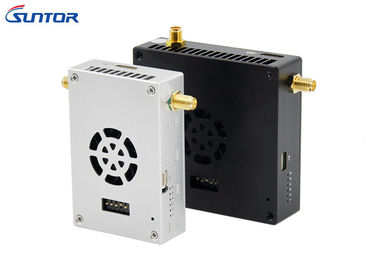

High Gain Dual Antenna 30km COFDM Wireless Transmitter For Large Heavy UAV

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST30HPT
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Contact Now
Detail Information
Modulation: COFDM RF Transmitted Power: 1.5Watts
Distance: 30km Bandwidth: 2/4/6/8MHz
Latency: 15-30ms Data: Support SBUS/PPM/TTL/MAVLINK
Power Supply: DC 7- 18V (DC 12V Advised) Weight: Tx: 93g, Rx: 148g

Product Description

High gain dual antenna 30km COFDM wireless transmitter for large heavy UAV



ST30HPT User Manual.pdf  ST30HPT Specs.pdf



Product description:
The Wireless HD Video transmitter system ST5NPT is for professional application in wireless aerial transmission. The wireless video system that transmits HD video over the unlicensed 2.4GHz band.
It is featured with long range, ultra-low latency. The system can be powered by batteries.



Main features:

  • Frequency: 2.4GHz (2.402-2.478GHz)

  • System Dealy: 15-25ms

  • RF Power: 1.5W

  • Video Input: HDMI and ethernet

  • Duplex Data: Support TTL-RS232/485

  • Resolution: Full HD 1080P

  • Transmission Distance: Air to Ground 30 km

  • Weight: Tx: 93g Rx: 148g

  • High gain double omni antenna transmitting & receiving



Application:
As its miniature volume, precision design, lightweight and easy to carry, suitable used in short distance and long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.



Parameters

Frequency

2.4GHz(2.400-2.482GHz)

Wireless Fault-tolerant

LDPC FEC

RF Transmitted Power

1.5Watts

Power Consumption

TX: 12Watts/RX: 5Watts

Distance

30km

Bandwidth

2/4/6/8Mhz

Video Input/output Interface

On board HDMI mini TX/RX or FFC convert to HDMI-A TX/RX

Bitrate and channel adjustment mode

DIP or SPI2MCU

Antenna

1T1R/ Tx: 5db(Omni Antenna) Rx: 10db(Omni Antenna)

Video Color Space

Default 4:2:0 optional: 4:2:2/4:4:4

Video Compressed Format

AVC adds H.265 feature TS stream

Adjustment mode of bitrate

Software adjustment

Communication Channel Encryption

WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256

Transmission Mode

point to point

Start-up time

25s

Latency

15-30ms

Transmission Rate

3-5Mbps

Receive Sensitivity

-100dbm@4Mhz, -95dbm@8Mhz

Two-way function

Support video and duplex data simultaneously

Data

Support SBUS/PPM/TTL/MAVLINK

Interface

(same interface on TX & RX)

1. 1080P 60 HDMI Mini RX x1

2. 100Mbps Ethernet to USB / RJ45 on Windows x2

3. S1 TTL bidirectional serial port x1

4. Power Input (DC7-18V) x1

Indicator Light

HDMI input/output indicator light

Transmitting and receiving indicator light

Video board indicator light

Power light

HDMI

HDMI mini/Flexible Flat Cable(FFC)

Appearance Design

CNC technology/double aluminum alloy shell with waterproof design

Power supply

DC 7- 18V (DC 12V advised)

Temperature Range

Operating temperature:-40°C ~+85°C

Storage temperature:-55°C ~ +100°C

Dimension

Tx: 73x48x20mm/ Rx: 72×73×24mm

Weight

Tx: 93g, Rx: 148g
