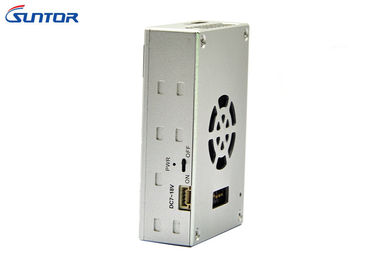

CD30HPT 30km COFDM High Definition Multimedia Interface video transceivers with ethernet port

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: CD30HPT

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

long range video transmitter

,

wireless hd video transmitter

Modulation:
COFDM
Frequency Range:
2.4GHZ(2.402-2.478GHz)
Frequency Bandwidth:
2/8/20MHz
Transmission Power:
1.5W
Latency:
12-25ms
Transmission Distance:
Air To Ground 30km
Video Input:
High Definition Multimedia Interface / Ethernet
Light Weight:
94g
Modulation:
COFDM
Frequency Range:
2.4GHZ(2.402-2.478GHz)
Frequency Bandwidth:
2/8/20MHz
Transmission Power:
1.5W
Latency:
12-25ms
Transmission Distance:
Air To Ground 30km
Video Input:
High Definition Multimedia Interface / Ethernet
Light Weight:
94g
Description
CD30HPT 30km COFDM High Definition Multimedia Interface video transceivers with ethernet port

CD30HPT Drone Video Transmitter & Receiver Specifi...



Description


CD30HPT is a mini HD Video and Data transmission COFDM system for UAV. It develops CABAC (h.264) coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 10km) and low delay(12-25ms) transmission. The system supports two-way(data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.



Features:

  • Compact designed, lightweight, less than 100g

  • Support 1080P 60&30 / 720P 60 resolution adjustable.

  • Low delay 12-25ms

  • Special for UAV / drones long range video communication

  • Maximum RF output 1.5 Watt, can support 30km LOS range.

  • Support 100Mbps ethernet to output and High Definition Multimedia Interface input output

  • Support two way video transmission & data transmission & voice transmission



Application:
As its miniature volume, precision design, lightweight and easy to carry, suitable used in long range air high speed wireless video data transmission purposes. Such as UAV, rotorcraft, micro UAV, drone, UGV, unmanned powered parachute and more video data transmission.



Parameters

Modulation

COFDM

Dimensions

72×47x19mm (antenna not included)

Net Weight

Tx:94g Rx: 98g (antenna not included)

Transmission Distance

Air to ground 30km

Working Frequency

2.402-2.478GHz adjustable

Transmission Power

1.5W (31.8dBm)

RF Bandwidth

2/8/20MHz

Transmission Mode

point to point / point to multipoint

Video Color Space

Default 4:2:0 optional: 4:2:2/4:4:4

Video Compressed Format

H.264 +H.265 TS

Video input

High Definition Multimedia Interface / Ethernet

Resolution

Full HD 1080P

Interface

Power input interface × 1
Antenna interface × 1
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1

Two-way function

Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module

Adjustment mode of bit rate

Software adjustment

Communication Channel Encryption

WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256

Working Temperature

-40°C - 85°C

Working Voltage

DC7~18V Optional

Power Consumption

TX: 7Watts

RX: 5Watts

Start-up time

< 30s

System Latency

≤12-25ms
