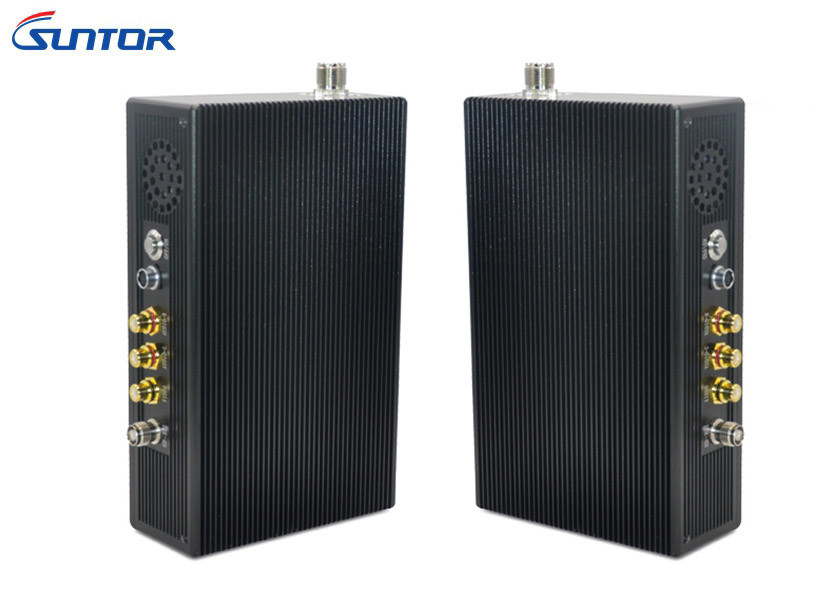

Long Distance SDI Wireless HD COFDM Video Transmitter For Manpack Wilderness

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST6200DB-HD

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

audio video transmitter

,

cofdm video sender

Modulation:
COFDM
Working Frequency:
300MHz~4400MHz
Output Power:
1~5W LCD Adjustable
Code Stream:
2Mbps~12Mbps
Encryption Mode:
Manual Operation AES Double Encryption
Transmit Range:
10km(LOS) 1km(NLOS)
Weight:
1.5kg
Size:
200×125×50 Mm (L×W×H)
Modulation:
COFDM
Working Frequency:
300MHz~4400MHz
Output Power:
1~5W LCD Adjustable
Code Stream:
2Mbps~12Mbps
Encryption Mode:
Manual Operation AES Double Encryption
Transmit Range:
10km(LOS) 1km(NLOS)
Weight:
1.5kg
Size:
200×125×50 Mm (L×W×H)
Description
Long Distance SDI Wireless HD COFDM Video Transmitter For Manpack Wilderness

Long range SDI wireless HD COFDM video transmitter for Manpack wilderness



Introduction:
Rack Mounted Wireless Range Data Transmitter and Receiver (ST6200DB-HD) is backpack system with outer rack, special for man-portable transmitter which can gather information and signal under the sea or through obstacles, such as many building, severe electromagnetic interference, remote mountains.



At the front-end personnel, scouts, firefighters, rescue personnel or television interview personnel, use transmitter of ST6200DB-HD to transmit the live signals to the rear command vehicle. Then the command vehicle will receive the image displayed on the monitor via the receiver which convenient for real time understanding of the site condition and timely command.



Feature:
One high definition image
Fully encrypted
Work frequency: 300~4400MHz(or customized))
Power adjustment: manually adjustable, changing range 1w ~ 5 w; ensure the safety of personnel or expand transmission distance.
Easy to use. No need to unload station when switch channels and adjust transmission power, one person can handle on the move.
Transmission can bypass the buildings, from indoor to outdoor , basement to ground, or underground tunnel to ground
Low latency allows for responsive remote joystick control



Applications:
The product is widely applied to a lot of industries, likes: Public Policing, Fire&Security, Air Defense, &Guard, Smash Smuggling, TV Broadcasting, Environment Protection, Maritime Affairs, Large Mine, High Security Surveillance. And also applied to any rugged terrains where there is no wired cable link for audio,video, datas transmission: Mountain, Forest, Countryside, Desert, River, Island, Oil Field, Large Mine, Maritime, Spacial, Firing, Earthquake, Riot etc









Modulation

Working frequency 300MHz~4.4GHz
Output power 1~5W LCD adjustable
Modulation COFDM
Channel bandwidth 2/2.5/4/8MHz
Encryption mode manual operation AES double encryption
System Standard H.264 standard
Code stream 2Mbps~12Mbps
Range 10km(LOS) 1km(NLOS)
Usage mode Manpack
Audio and video Compression format H.264
AV input HD-SDI or High Definition Multimedia Interface,CVBS(optional)
Audio input BNC female port, HD-SDI or High Definition Multimedia Interface standard interface
Image resolution

HD1080P(1920*1080), compatibility 1080I,720P,480P and standard

resolution

Image frame rate HD1080P/60fps, HD1080I/50fps
Video input physical interface BNC female port, High Definition Multimedia Interface standard interface
Audio input physical interface BNC female port, High Definition Multimedia Interface standard interface
Others Power supply special battery DC14.4V
LCD display Display Work Instructions and the Parameters
Size 200×125×50 mm (L×W×H)
Weight

1.5kg
