Mini Handheld COFDM Wireless Video Receiver Aluminium Alloy HD 1080P

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST6200RSC
Minimum Order Quantity 1 set
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Receiving Frequency 138MHz~2470MHz
Resolution HD 1080P Bandwidth 2/2.5/4/8MHz
Video Output High Definition Multimedia Interface, CVBS Power Supply DC 12±3V
Weight 0.4kg
Highlight

Mini Handheld Wireless Video Receiver

,

Aluminium Alloy COFDM Video Receiver

,

HD 1080P COFDM Video Receiver

Leave a Message
Product Description

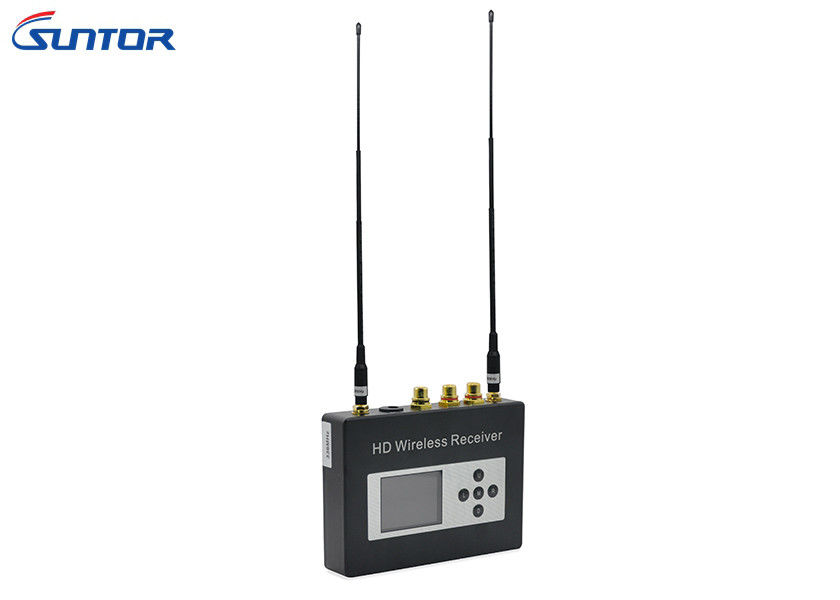

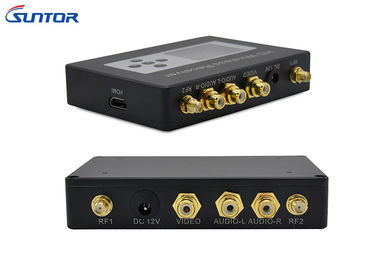

 Mini Handheld Aluminium Alloy HD 1080P COFDM Wireless Video Receiver



Mini size design, easy to carry, simple operation, saving time, easy wireless image transmission for NLOS, wide application. And it is suitable for sector institutions have high demanding of image quality to replace SD products.



It uses H.264 video decoding standard. The definition is Full HD 10180P, and resolution 1920 * 1080 compatible 1080I, 720P, 480P and SD. Support digital High Definition Multimedia Interface and CVBS AV output. New design, mini size and easy operation.



Advantages

  • Resolution: HD1080P compatible with SD
  • 0.4kg, Mini size and easy to carry
  • Built-in LCD to display and adjust parameters
  • Built-in battery for 4 hours working time
  • Operating frequency band 2 / 2.5 / 4 / 8MHz Adjustable on LCD
  • Dual antenna receiving, stable signal and smooth image
  • Aluminium alloy housing to shock resistant



Technical Parameters



RF Modulation

  • Receiving Frequency: 138MHz~2470MHz
  • Modulation: COFDM
  • Frequency Band: 2/2.5/4/8MHz
  • Encryption: Manually set up a dual AES encryption
  • Receiving Sensitivity: ≤-100dBm @ 4MHz, ≤-97dBm @ 8MHz
  • Signal Strength: Display on LCD

System

  • Receiving Polarization: Vertical polarization, Dual antenna
  • Receiving Technology: Space Diversity Technology

Video

  • Compress Format: H.264
  • Video output: Digital High Definition Multimedia Interface, CVBS
  • Audio output: Standard 3.5 Stereo Output
  • Definition: Full HD 10180P( 1920 * 1080), compatible 1080I, 720P, 480P and SD
  • Image Frame Rate: Standard 24,50,60f/s compatible with other frame rate
  • Audio/ Video Output Physical Interface: High Definition Multimedia Interface, Lotus female

Others

  • Power Supply: DC 12±3V
  • Dimension: 125*90*25mm
  • Housing: Aluminium alloy
  • Weight: 0.4kg
