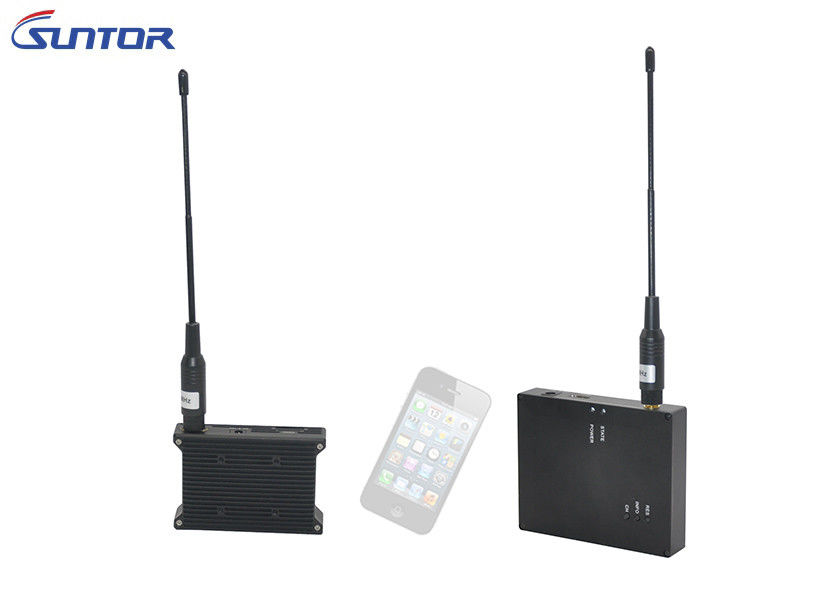

Outdoor COFDM Wireless Transmitter , Wifi Video Camera Transmitter And Receiver

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST6200BM-HD
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Detail Information
Modulation: COFDM Working Frequency : 138MHz-2GHz Adjustable
Transmission Power: 27dBm Channel Bandwidth: 6MHz
Resolution: HD 720P Transmission Range: Air To Ground: 1-5km LOS: 1-2km NLOS≥200m
Net Weight: 120g Video Interface: HDMI
High Light:

wireless hd transmitter

,

wireless hdmi video transmitter


Product Description

400mW Nlos and Moving Camera Transmission COFDM Wireless Video Transmitter



Introduction:
Mainly used in UAV video Aerial photography transmission scenario, the device will transmit video signal to the receiver and display video images,can do real-time monitoring.



ST6200BM-HD mini portable HD wireless video transmission equipment is new generation of real-time broadcast-quality high-resolution image transmission system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency 6MHz, it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and real-time transmit high quality image in NLOS or complicated working environment.



Features:

  • High quality digital video processing
  • COFDM modulation, H.264 coding and encoding
  • Vibration and shock resistant
  • Real-time transmission system, delay time for end-to-end is less than 300ms
  • Great action ability, can transmit images voice stably in the condition of high speed movement and multi-path interference
  • Support NLOS (non-line of sight) transmission, strong diffraction capability
  • Long range transmission distance
  • Spatial diversity reception ability, support high-speed mobile transmission
  • Stable signals, image clear and stable, has no mosaic or drag phenomenon
  • Extreme lightweight and rugged housing ,mini size

RF-modulation Part
Frequency Range 138MHz~2GHz (customizable)
Modulation COFDM
Output Power 400mW
Transmission Distance LOS: 1~2KM, Air to earth: 1~5KM, NLOS>200m
Channel Bandwidth 6MHz
Error Correcting Mode FEC@Viterbi (1/2, 2/3, 3/4)
Guard Interval 1/32, 1/16, 1/8, 1/4
Technical Standard H.264
Code Stream 2Mbps~8Mbps
Usage Mode Easy carrying, aerial photo, Hidden, NLOS transmit
Video Audio Part
Image Resolution HD720P (1280*720)
Compression Format H.264/MEG-2
Image fps Standard 24,50,60 fps
Video Audio Input/output port Digital HDMI port
RF Physical Interface SMA
Transmitter Light Video screen, channel shows
Receiver Signal Light shows the signal strong
Alarm Output Video loss, image loss
Receiving Polarization Vertical
Other Part
Other Function Comes with restart button and channel checking button
Power Supply Transmitter DC2.75 port, DC9-16V
  Receiver DC5.5, DC9-16V
Size Transmitter 89*62*22mm
  Receiver 108*88*21mm
Net Weight Transmitter 120g
  Receiver 170g



Application Mode:
With the feature of small size, light weight(only 175g) and easy for secret portable, this “Spy” type wireless video transmitter can be hung on the waist, put in brief case. It is always applied in criminal investigation,UAV etc.
