Outdoor Handy COFDM Hidden Camera Video Transmitter Wireless With Light Weight

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: ST6200BM-HD

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 3-5 Days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

Light Weight wireless radio transmitter

,

Hidden Camera Wireless Video Transmitter

,

COFDM Hidden Camera Transmitter

Modulation:
COFDM
Frequency Range:
138MHz-2GHz
Resolution:
HD 720P
Transmission Range:
Air To Ground: 1-5km LOS: 1-2km NLOS≥200m
Power Supply:
DC 9-16V
Light Weigh:
120g
Video Interface:
High Definition Multimedia Interface
Modulation:
COFDM
Frequency Range:
138MHz-2GHz
Resolution:
HD 720P
Transmission Range:
Air To Ground: 1-5km LOS: 1-2km NLOS≥200m
Power Supply:
DC 9-16V
Light Weigh:
120g
Video Interface:
High Definition Multimedia Interface
Description

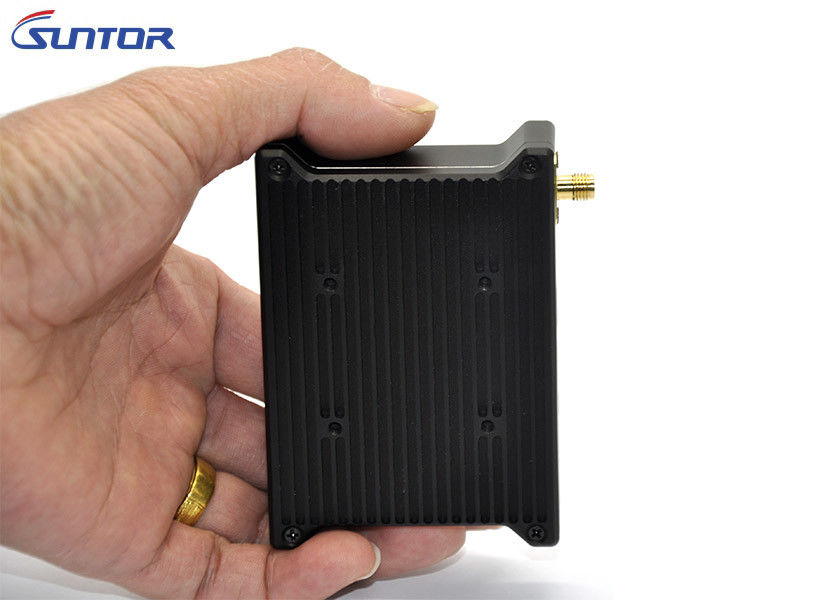

Outdoor Handy COFDM Hidden Camera Video Transmitter Wireless With Light Weight

Outdoor handy wireless COFDM secret camera video transmitter receiver with light weight



Introduction:
Small, light, use H.264 encoding scheme and COFDM digital modulation mode, provide 720P HD video, great diffraction ability, support non-line of sight transmission, can be put in brief case, can transmit the live image to the rear people when secretly visit or obtain evidence. It is mainly used in public security, procurator, law, security bureau, other departments, etc.



Features:
Power output: 400mW (27dBm)
Frequency: customized within range 300MHz to 2GHz
Bandwidth: 6MHz
Video interface: High Definition Multimedia Interface
Receiver: rack mount receiver and portable suitcase receiver(1CH~4CH) optional



Application:

Mini HD COFDM Video Transmitter ST6200BM-HD is widely used in UAV aviation filming,,covert investigation,image monitor and real-time wireless video transmission.



RF-modulation Part
Frequency Range 138MHz~2GHz (customizable)
Modulation COFDM
Output Power 400mW
Transmission Distance LOS: 1~2KM, Air to earth: 1~5KM, NLOS>200m
Channel Bandwidth 6MHz
Error Correcting Mode FEC@Viterbi (1/2, 2/3, 3/4)
Guard Interval 1/32, 1/16, 1/8, 1/4
Technical Standard H.264
Code Stream 2Mbps~8Mbps
Usage Mode Easy carrying, aerial photo, Hidden, NLOS transmit
Video Audio Part
Image Resolution HD720P (1280*720)
Compression Format H.264/MEG-2
Image fps Standard 24,50,60 fps
Video Audio Input/output port Digital High Definition Multimedia Interface port
RF Physical Interface SMA
Transmitter Light Video screen, channel shows
Receiver Signal Light shows the signal strong
Alarm Output Video loss, image loss
Receiving Polarization Vertical
Other Part
Other Function Comes with restart button and channel checking button
Power Supply Transmitter DC2.75 port, DC9-16V
  Receiver DC5.5, DC9-16V
Size Transmitter 89*62*22mm
  Receiver 108*88*21mm
Net Weight Transmitter 120g
  Receiver 170g
