CD11HPT HD Digital 5km 2.4GHz COFDM Wireless Transmitter Small UAV Data Link

Product Details

Place of Origin: China

Brand Name: SUNTOR

Certification: CE Rohs

Model Number: CD11HPT

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: talking

Packaging Details: ABS box

Delivery Time: 15days

Payment Terms: Western Union, T/T

Supply Ability: 100 set per month

Get Best Price
Contact Now
Specifications
Highlight:

2.4GHz COFDM Wireless Transmitter

,

5km COFDM Wireless Transmitter

,

2.4GHz COFDM Wireless Video Transmitter

Fre:
2.4g Only
Video:
HD Digital
Band:
10M/5M
Rate:
2M-3M
POWER:
1W
Distance:
10km
Fre:
2.4g Only
Video:
HD Digital
Band:
10M/5M
Rate:
2M-3M
POWER:
1W
Distance:
10km
Description
CD11HPT HD Digital 5km 2.4GHz COFDM Wireless Transmitter Small UAV Data Link

HD Digital 5km 2.4GHz COFDM Wireless Transmitter Small UAV Data Link



Smaller dimension 5km video 2.4GHz drone transmission uav data link



CD11HPT Drone Video Transmitter & Receiver Specifi...



Introduction of drone transmission uav:

ST5HPT is a mini Full HD Video transmission and duplex data telemetry control system for UAV drones offering video data control, telemetry & payload in,

Video Transmission in 1 RF channel. It develops video format(H.264+H.265) coding&decoding technology to achieve

Utra-high resolution(1080P), long distance(air to ground 10km) and low delay(50-100ms) transmission. The system

supports two-way(data) communication, adjustable video resolution, bit rate output with 115200. It can realize the soft decoding with low delay. Meanwhile this series products have small size, light-weight,

low consumption, high stability and high sensitivity. They are suitable various environment of different application.



Features of drone transmission uav:

 Working Temperature: -40℃—+85℃

 Support TTL/Mavlink Protocol

 Dual Serial Ports for bi-directional Data

 Offering control, telemetry & payload in, Video Transmission in 1 RF channel

 Video: Video sources self-adaptive(Max 1080P/60), Support Ethernet HDMI Input/output



Technical parameters of drone transmission uav:

Distance

10km

Frequency

2.4G

Video

HD+Eth

Data

TTL

Size

76*48*20mm

Model

PTP

TX Consumption

10W

RX Consumption

93g



Technical Support of drone transmission uav:

Q1:How long range from air to ground?

Suntor 5km 10km 15km 30km.



Q2:Video output type?

HD+Ethernet or Ethernet only.



Q3:Frequency would be?

2.4G 1.4G 800M



Q4:Transmitting mode?

Point to point and point to multi-point

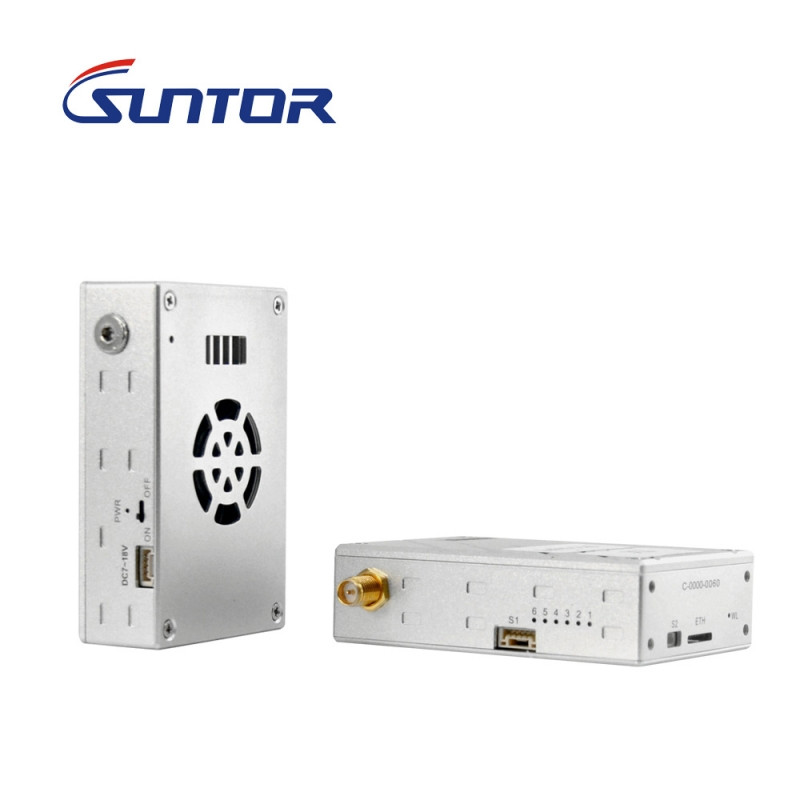

Product picturer of drone transmission uav:



CD11HPT  HD Digital 5km 2.4GHz COFDM Wireless Transmitter Small UAV Data Link 0
