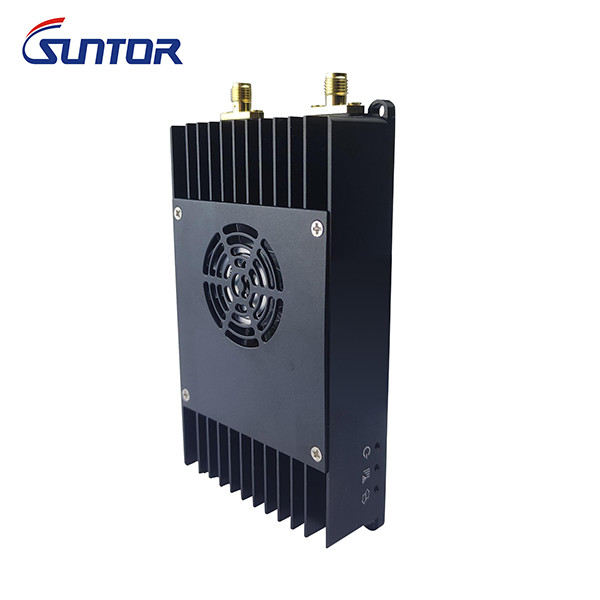

CD30NMT Wireless PTP PTMP 4-12Mbps 2W 30KM Drone Video Transmitter

Name: CD30NMT Wireless PTP PTMP 4-12Mbps 2W 30KM Drone Video Transmitter
Brand: Shenzhen Suntor Technology Co., Ltd.
SKU: CD30NMT
Price: 5,500.00 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen China

Brand Name: Suntor

Certification: CE RoHS

Model Number: CD30NMT

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: negotiation

Packaging Details: Aircasing

Delivery Time: 3-7days

Payment Terms: T/T, Western Union

Supply Ability: 1000SET/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              30KM Drone Video Transmitter, 2W Drone Video Transmitter, PTMP Long Range Video Transmitter


Frequency:	1.4G/800MHz/2.4G	Range:	30km
Rate:	4-12Mbps	Model:	PTP/PTMP
Antenna:	Double Antenna	Power:	2 Watts
Data:	TTL/RS232	Encryption:	AES128

Frequency:	1.4G/800MHz/2.4G
Range:	30km
Rate:	4-12Mbps
Model:	PTP/PTMP
Antenna:	Double Antenna
Power:	2 Watts
Data:	TTL/RS232
Encryption:	AES128

Description

CD30NMT Wireless PTP PTMP 4-12Mbps 2W 30KM Drone Video Transmitter

30KM Long Range Video Transmitter Industrial Drone Project Mapping Drones

CD30NMT Drone Video Transmitter & Receiver Specifi...

SUNTOR module CD30NMT is the latest miniaturized and functional wireless transmission equipment. It

adopts TDD wireless transmission technology and dual antenna diversity design to make the signal

transmission quality more stable. The device can support bidirectional transmission of network data and TTL

serial data at the same time. The data link can be adjusted according to different ratios, and the uplink and

downlink data link transmission rates can be adjusted proportionally. In addition, the module has three

frequency of 2.4GHz/1.4GHz/800MHz for option. The equipment can be applied to the use of intelligent

unmanned terminals such as UAV drones, unmanned ships, unmanned boats and robots.

Feature:

TDD wireless transmission technology
Optional frequency 800MHz,1.4GHz
Duplex Transmitting Rate is 4-12Mbps
Support Point to Point and Point to Multi-Point. 2-4 TX to 1RX, or 2-4 RX to 1TX.
Dual antenna diversity design to make the signal transmission quality more stable, and high receiving
sensitivity
Long range more than 30km
2W RF power and lower power consumption
Support IP video output and bidirectional TTL/RS232 serial data
Adapt to global temperature -30℃～70℃
AES128 Encryption
The uplink and downlink data link transmission rates can be adjusted proportionally(2D3U,3D2U,4D1U)
Optional Bandwidth(3MHz/5MHz/10MHz/20MHz)

Data Sheet:

Frequency:1.4GHz(1427.9-1447.9MHz) 800MHz(806-826 MHz)

Power:33dBm(2W)

Receivng Sensitivity:

2.4G ( 1Mbps ) :20MHz -99dBm

10MHz

-102dBm5MHz -104dBm

3MHz -106dBm1.4G

( 1Mbps ) : 10MHz -103dBm

5MHz -106dBm

3MHz -108dBm800M ( 1Mbps ) :10MHz -103dBm

5MHz -106dBm 3MHz -108dBm

Antenna:Double Antenna

Serial Port:TTL (Baud rate 115200)

Consumption:5V power supply the consumption maximum in

850mA±15%

Working

Temperature:-25℃~60℃

Frequency Hopping:

Support automatic frequency hopping in the range of frequency.

Packaging: Transmitter x1, Receiver x1, Small Omni Antenna x4 Power Cable x2
