Product Details
Place of Origin: Shenzhen
Brand Name: Suntor
Certification: CE, RoHS, FCC
Model Number: ST5NPT
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: box package
Delivery Time: 8-15 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs per month
Range: |
5KM |
Dimensions: |
68×48x15mm |
Weight: |
68g |
Modulation: |
TDD-COFDM |
Color: |
White |
RF Power: |
0.5W |
Material: |
GB Aluminum |
Range: |
5KM |
Dimensions: |
68×48x15mm |
Weight: |
68g |
Modulation: |
TDD-COFDM |
Color: |
White |
RF Power: |
0.5W |
Material: |
GB Aluminum |
Suntor is a breakthrough transmission solution that makes it easy for professional drone users to outfit any shape and size drone with long-range low-latency full-HD video transmission capabilities.
Suntor provides the operator with maximum flexibility via two-way control and on-screen display telemetry.
Features
1. Modulation TDD-COFDM
2. Support AES encryption
3. Excellent objective and subjective video
4. Ultra-low latency 10-30ms
5. Ultra small resource and high performance
6. Ultra-low power consumption 0.5W
| Ethernet Protocol | TCP/UDP |
| Frequency |
3 frequency for your option 2.3Ghz/2.4Ghz/2.5Ghz(customized) 2.4GHz(2402Mhz-2482MHz) default
|
| RF Transmitting Power | 27dBm(air to ground 5km) |
| Frequency Bandwidth | 4MHz |
| Error Detection | LDPC FEC |
| Start-up time | <30 s |
| Communication Channel Encryption | AES128 |
| Transmission Mode | point to point |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support SBUS/TTL/MAVLINK Telemetry |
| Date Rate | 3-5Mbps |
| Sensitivity |
-100dbm@4Mhz -95dbm@8Mhz |
| Power | DC 12V (support DC 7-18V) |
| Power Consumption | TX: 4Watts |
| RX: 4Watts | |
| Temperature | Operating temperature: -40 - +85°C |
| Storage temperature: -55 - +100°C | |
| Interface | Power input interface × 1 |
| Antenna interface × 1 | |
| TTL Bidirectional Port × 1 | |
| Ethernet to USB / RJ45 on Windows × 2 | |
| Indicator | RJ45 input/output indicator light |
| Transmitting and receiving indicator light | |
| Transmitting and receiving indicator light | |
| Power light | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Size | 68×48x15mm |
| Net Weight | Tx: 68g |
| Rx: 68g |

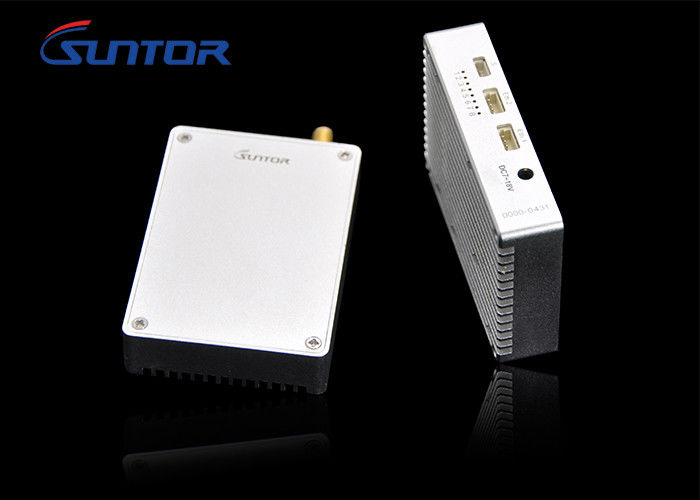

This model of ST5NPT Drone Video Transmitter Link work at 2.4GHz frequency, it brings broadcast HD video quality and robustness standards to the rapidly evolving UAV aerial video arena. Designed from the ground up for UAV drone applications, packs the performance, form factor, interfaces and reliability required for getting the job done; anywhere, anytime.
The drone video transmitter and receiver of ST5NPT with ETH and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.HD wireless video link designed for the professional drone market all over the world.
.
