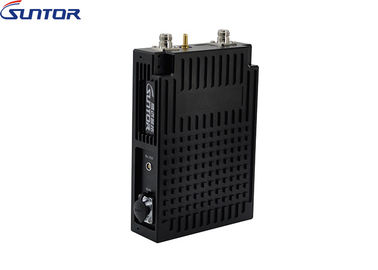

Long Range 2x2 MIMO Radio Wireless Audio Video Transmitter UHF Frequency For Unmanned Systems

Product Details

Place of Origin: CHINA

Brand Name: SUNTOR

Model Number: ST9602MD

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Packaging Details: Cartons

Delivery Time: 1-2weeks

Payment Terms: T/T, Western Union

Get Best Price
Contact Now
Specifications
Highlight:

cofdm hd wireless transmitter

,

wireless hd video transmitter

Antenna:
2*N Type Antenna Interface
Power:
DC9-28V
Battery:
12V/21Ah
Waterproof:
IP66
Battery Endurance:
4Hours
Temperature:
Working: -20℃~+70℃
Rx Sensitivity:
-92dBm
RF Power:
2watts
Antenna:
2*N Type Antenna Interface
Power:
DC9-28V
Battery:
12V/21Ah
Waterproof:
IP66
Battery Endurance:
4Hours
Temperature:
Working: -20℃~+70℃
Rx Sensitivity:
-92dBm
RF Power:
2watts
Description
Long Range 2x2 MIMO Radio Wireless Audio Video Transmitter UHF Frequency For Unmanned Systems

Long-Range 2x2 MIMO Radio for Unmanned Systems UHF Frequency for NLOS



Data Sheet



User Mannual



Introduction

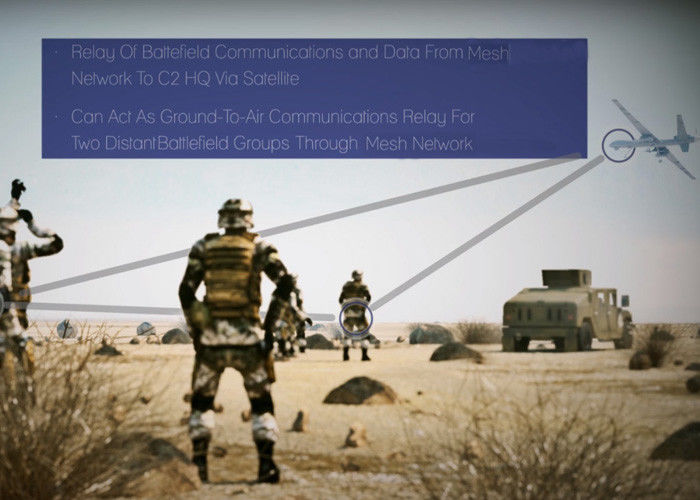

The ST9502MD broadband mesh radio which adopts self-developed COFDM modulation scheme, high efficiency channel codec and MESH networking protocol, offers strong NLOS performance with high throughput. It is an ideal solution to establish a self-forming, self-healing network between different points such as soldiers, vehicles and drones, this centerless network is capable of transporting heavy data in harsh environment.



Key Features

  1. Up to 30dBm of output power
  2. Multi link wireless communication
  3. Wireless MESH network, bridge and PTZ control combination
  4. Long range full duplex and NLOS telecommunication support
  5. Good diffraction and anti-interference
  6. High security with encryption 256 bits
  7. Small dimension, light weight, heat dissipation of aluminum case
  8. Highly integrated modular combination design



Specification Sheet



Specifications
Frequency 300-1400MHz available
Bandwidth 5M/10M/20M(Adjustable)
RF power 30dBm (33dBm/33dBm Optional)
Sensitivity -92dBm maximal
Modulation DSSS/OFDM BPSK/QPSK//16-QAM/64-QAM
Working voltage DC12V
Power consumption ~ 5W
Working temperature -20℃~ +65℃
RF interface SMA * 2
Ethernet port RJ45 * 1 (for any device that with Ethernet port)
Operation Manual via Web Software
Dimension 141.5mm*88mm*30m
Weight 460g
Distance for 2 pcs 1Km NLOS in forest

Package List

1*ST9602MD,

2*Manpack Antenna,

1*Battery(12V/21Ah),

1*Manpack Harness,

1*Power Cable,

1*RS232 Data Cable,

1*Battery Charger

1*Wifi Antenna

1*Hand Grip
