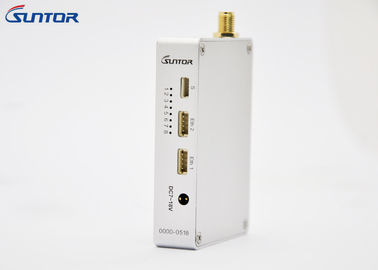

UAV HD video link Drone Video Transmitter Ethernet with flight control station

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST10NPT
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Detail Information
RF Bandwidth: 2/4/6/8Mhz Range: 10km
Working Temperature: -40 - +85°C Transmitting Power: 1000mW
Antenna: 1T1R Data: Support SBUS/PPM/TTL
Data Rate: 3-5Mbps Power: DC 7-18V
High Light:

drone transmitter and receiver

,

drone wireless video transmitter


Product Description



UAV HD video link Drone Video Transmitter Ethernet with flight control station



Data Sheet



User Manual







Introduction



ST10NPT is developed by SUNTOR Electronics, is digital wireless video transmission system. It is used for high quality video transmission in environment of serious multipath effect (sea clutter) such as cities of skyscrapers or sea surface.



ST10NPT is a UAV transmitter, mainly used as individual soldier equipment, with bi-directional data transmitting by TTL serial port.



ST10NPT can also be used for various UAVs as on board transmitter. Allowed motion speed of the helicopter can reach more than 10-14kilometers with double ethernet input. It is an ideal equipment applicable to individual soldiers, urban environment and motion





Features



Modulation: TDD-COFDM
Frequency: 2.4GHz(2.400 - 2.482 GHz)
Air to Ground Distance: 10-14km
Duplex Data: Support SBUS/PPM/TTL
Video Input: RJ45



TX



Dimension: 68×48x15mm

Weight: 68

Support IP Video input, Auto pilot system and UAV nacelle

Double Antenna for transmitting



RX



Dimension: 68×48x15mm

Weight: 68g

Support Ethernet video output, connecting with GS, RC, PC and display

Double Antenna for Receiving





Parameters



TDD cofdm uav/uas wireless video transmitter
Power supply DC7V~18V
Ethernet

10/100BaseT,Auto-MDI/X,IEEE802.3

TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS

Output frequency 2405~2470MHz(adjustable)
Range 10-14km
Output rf power 1Watt
Bandwidth 2/4/6/8MHz
Interface Double Serial port+Ethernet
Serial Baud Rage Up to 115200bps
Modulation TDD_COFDM
Error correction mechanism Wireless Baseband FEC Forward Error Correction / Video MPEG Super Error Correction
Working temperature -40℃~85℃
Dimension 68×48x15mm
Weight TX: 68g, RX: 68g
