IP Camera 10-14km UAV Transmitter No encoding Video and data transmitting System

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST10NPT
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Detail Information
Modulation: TDD-CODFM DC Input: 7-18V DC
Working Current: ≤1A At 12V DC Size: 68×48x15mm
Net Weight: Tx: 68g /Rx: 68g Frequency: 2.4GHz (2.402-2.478GHz)
RF Transmitting Power: 30dBm Antenna: 1T1R
High Light:

uav video transmitter

,

drone wireless video transmitter


Product Description



IP Camera 10-14km UAV Transmitter No encoding Video and data transmitting System



Data Sheet





Description



ST10NPT is a COFDM wireless communication equipment based on military standard. It supports 2.4GHz(2. 402~2. 478 GHz) and suitable for long distance, high code stream and wireless transmitting application. The transmitting rate up to be 70Mbps and the farthest transmission distance is 10km air to ground.



This model has advantages of light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.



Features



Modulation: TDD-COFDM
Frequency: 2.4GHz(2.400 - 2.482 GHz)
Air to Ground Distance: 10-14km
Duplex Data: Support SBUS/PPM/TTL
Video Input: RJ45



TX



Dimension: 68×48x15mm

Weight: 68

Support IP Video input, Auto pilot system and UAV nacelle

Double Antenna for transmitting



RX



Dimension: 68×48x15mm

Weight: 68g

Support Ethernet video output, connecting with GS, RC, PC and display

Double Antenna for Receiving





Parameter



Frequency 2.4GHz (2.402-2.478GHz)
RF Transmitting Power 30dBm(air to ground 10km)
Frequency Bandwidth 2/4/6/8MHz
Antenna 1T1R
Adjustment mode of bit rate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Data Rate Duplex 3-5Mbps
Power DC 7-18V
Power Consumption TX: 4Watts
RX: 4Watts
Temperature Operating temperature: -40 - +85°C
Storage temperature: -55 - +100°C
Interface Power input interface × 1
Antenna interface × 1
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 2
Indicator RJ45 input/output indicator light
Transmitting and receiving indicator light
Transmitting and receiving indicator light
Power light
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 68×48x15mm
Net Weight Tx: 68g
Rx: 68g





Pictures

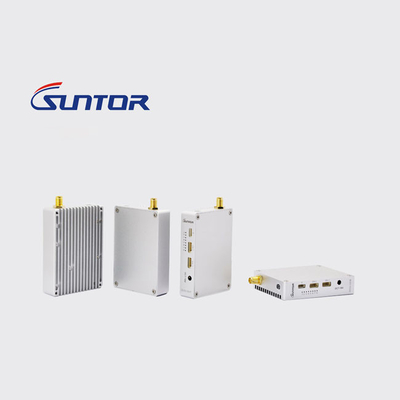

IP Camera 10-14km UAV Transmitter No encoding Video and data transmitting System 0
