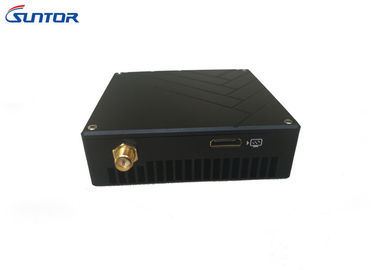

C50HPT 50km Ultra Long Range COFDM HD Transmitter For UAV Video Data Transmission

Product Details

Place of Origin: Shenzhen, China

Brand Name: SUNTOR

Certification: FCC, CE, RoHS

Model Number: C50HPT

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Plastic Box

Delivery Time: 7-15 days

Payment Terms: T/T, Western Union, Paypal

Supply Ability: 1000 set/ month

Get Best Price
Contact Now
Specifications
Highlight:

50km COFDM HD Transmitter

,

FCC UAV Video Data Link

,

UAV COFDM HD Transmitter

Modulation:
COFDM
Frequency Range:
2.402-2.478GHz Adjustable
RF Power:
2W (33dBm)
Video Data Port:
High Definition Multimedia Interface / Ethernet / RS232
Resolution:
Full HD 1080P
Transmission Distance:
Air To Ground 50 Km
Power Supply:
DC7-18 V Optional
Light Weight:
Tx: 208g, Rx: 100g
Modulation:
COFDM
Frequency Range:
2.402-2.478GHz Adjustable
RF Power:
2W (33dBm)
Video Data Port:
High Definition Multimedia Interface / Ethernet / RS232
Resolution:
Full HD 1080P
Transmission Distance:
Air To Ground 50 Km
Power Supply:
DC7-18 V Optional
Light Weight:
Tx: 208g, Rx: 100g
Description
C50HPT 50km Ultra Long Range COFDM HD Transmitter For UAV Video Data Transmission

COFDM Modulation UAV Data Link Professional Full HD Image Transmission for Drones



C50HPT Drone Video Transmitter & Receiver Specific...



1. Introduction


C50HPT is Full HD image transmission system equipment professional for UAVs, standard COFDM modulation. The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate, and then improve image quality. It can be the lowest bit rate to achieve the best quality of image.
Supports RF power 400mW-2W, High Definition Multimedia Interface AV Input. 2.402-2.478GHz (optional).





2. Features

  • Working Temperature: -40℃ ~ +85℃;
  • Support SBUS/PPM/TTL/232/485;
  • Video: Video sources self-adaptive (Max 1080P). Support High Definition Multimedia Interface Input/output;
  • Support Video and Duplex Data;
  • Compatible with different brand flight controller and remote controller.
  • 100Mbps Ethemet for option;
  • Matching with our TPlayer software (low latency software decoder) to display video on PC.



3.Parameter

Wireless
Frequency Range 2.4GHZ (2.400-2.482GHZ)
Bandwidth 1-8Mhz
RF Power 33dBm (Air to Ground 40-70km)
Error Detection LDPC FEC
Latency ≤15-30ms
Receive Sensitivity -100dBm ~ -90dBm



Video
Input/output Onboard High Definition Multimedia Interface mini TX/RX or FFC Convert to High Definition Multimedia Interface-A TX/RX
Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Compressed Format AVC, H.265, TS



Interface
HD media Interface High Definition Multimedia Interface mini/Flexible Flat Cable(FFC)
Video Input/output Interface High Definition Multimedia Interface mini TX/RX, or transform FFC to High Definition Multimedia Interface-A RX/TX
Antenna

1T1R

TX: 7db (25cm Omni Antenna)

RX: 10db (Omni Antenna)
Transmitter Interface 1080P 60 High Definition Multimedia Interface Mini RX
100Mbps Ethernet Port
S1 TTL bidirectional serial port
S2 TTL bidirectional serial port
SMA RF
Receiver Interface 1080P 60 High Definition Multimedia Interface Mini RX
100Mbps Ethernet Port
S1 TTL bidirectional serial port
S2 TTL bidirectional serial port
SMA RF
Indicator Light High Definition Multimedia Interface input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
Interface Power input interface × 1
Antenna interface × 1
RS232 Bidirectional Port × 1(With isolation protection, resistance to 3000V pulse voltage)
Ethernet to USB / RJ45 on Windows × 1



System
Start-up time 25s
Power Consumption TX:10Watts/Rx:7Watts
Power supply DC 7- 18V (DC16.8V advised)
Transmission Mode point to point / point to multipoint
Transmission Distance Air to ground 40-70km
Adjustment mode of bitrate Software adjustmentt
Security WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Total delay of the system 15-30ms of 1080P60/720P60 coding and decoding.
Two-way function Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module.



Physical
Dimension 24mm×73mmx76mm
Weight Tx: 208g, Rx: 100g
Operating temperature -40°C ~ 85°C
Storage temperature 55°C ~ 100°C
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design





4.Application



Suntor’s HPT Series tiny video transmitters offer many innovative features, are designed to withstand harsh environments, and are ideal for Drones, UAV, and other applications requiring high efficient, high quality video/data transmission in a compact, rugged package.



HPT transmitters may be configured with fixed RF output powers of 400 mW, 1 Watt, 1.5 Watt, 2 watt. Transmitters may be optionally configured with remotely selectable power levels utilizing any of these three power levels. Suntor’s proprietary power-leveling circuit ensures level output power over the entire frequency band.



5. FAQ



Q1. Can I Have A Sample Order For Wireless Video COFDM Transmitter?

A: Yes, We Welcome Sample Order To Test And Check Quality. Mixed Samples Are Acceptable.



Q2. What About The Lead Time?

A: Sample Needs 5-7 Days, Mass Production Time Needs 1-2 Weeks For Order Quantity More Than



Q3. Do You Have Any MOQ Limit For COFDM Transmitter Order?

A: Low MOQ, 1pc For Sample Checking Is Available



Q4. How Do You Ship The Goods And How Long Does It Take To Arrive?

A: We Usually Ship By DHL, UPS, FedEx Or TNT. It Usually Takes 3-5 Days To Arrive. Airline And Sea Shipping Also Optional.



Q5. Is It OK To Print My Logo On COFDM Transmitter Product?

A: Yes. Please Inform Us Formally Before Our Production And Confirm The Design Firstly Based On Our Sample.
