Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST6000RSY-4
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
COFDM |
Frequency Range: |
170~860MHz |
Video Decoding: |
MPEG-2/H.264/MPEG-R |
Audio/ Video Output: |
4 Channel |
Power Supply: |
AC220V/DC12V <2A |
LCD Size: |
15 Inches |
Net Weight: |
10 Kg |
Modulation: |
COFDM |
Frequency Range: |
170~860MHz |
Video Decoding: |
MPEG-2/H.264/MPEG-R |
Audio/ Video Output: |
4 Channel |
Power Supply: |
AC220V/DC12V <2A |
LCD Size: |
15 Inches |
Net Weight: |
10 Kg |

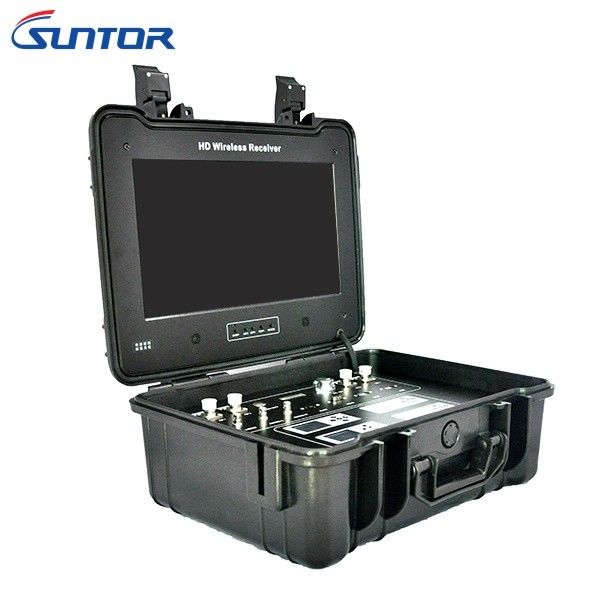

Portable 4 CH Commander COFDM Wireless Monitor Video Receiver Box
Introduction:
ST6000RSY-4 is COFDM wireless vehicle-mounted monitor receiver.
The transmitter and receiver make up a completed AV transmission system.
The item is applied to fast-moving situations without line-of-sight for it is very senstive to the signal.
It adopts the current leading COFDM modulation technology to make the transmission signal stable. Meanwhile, the image is clear, stable and real-time for the DVD standard MPEG-2 image compression and codec technology.
The cameras also can be remote controlled with multi-function controlling keyboard.
Product Advantages:
4CH AV can be showed at a time with high resolution
Built-in 4CH audio and video synchronization DVR
Support record, playback, storage, build-in 500G hard disk. From the box screen, the controller can see 4CH video at the same time.
High-performance, high-capacity lithium battery (Battery can be replaced), can work 1.5 hours without interrupting. GPS customized.
Work in non-line-of-sight
Encryption available for transmitting ( RS232 ), two-way voice transmission
Stable signal and long range transmitting for the double antenna designing
Work well with fast moving. 3G wireless transmission function makes the transmitting distance is unlimited.
|
Image receive |
Frequency Range |
170~860MHz VHF & UHF/ four ways |
|
Frequency Bandwidth |
2/3/4/5/6/7/8MHz (Optional) |
|
|
Low-noise amplifier gain |
22dB |
|
|
Amplifier noise figure |
Less than 1dBm |
|
|
Filter bandwidth |
20MHz |
|
|
Receiving antenna bandwidth |
16MHz |
|
|
Power Splitter |
1 input, 4 output |
|
|
Power splitter loss |
12dB |
|
|
RF input level |
64QAM ,-92dBm /16QAM ,-98dBm/QPSK, -104dBm |
|
|
RF input impedance |
50Ω |
|
|
Number of RF input |
2PCS |
|
|
RF Interface |
N connector |
|
|
Modulation |
COFDM |
|
|
Constellation |
QPSK, 16QAM, 64QAM (Optional) |
|
|
FEC |
1/2,2/3,3/4,5/6,7/8 (Optional) |
|
|
Carrier |
2K |
|
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 (Optional) |
|
|
Video decoding |
MPEG-2MP@ML@ML/H.264/MPEG-R |
|
|
Aspect Ratio |
4:3, 16:9 |
|
|
Video Image |
720*576@8MHz |
|
|
Receiver parameters display |
The four receivers parameters display independent, set the parameters |
|
|
parameters display |
stereo non-equilibrium 300/200 mV |
|
|
Audio and video output |
4 Audio output +4 Video output |
|
|
decrypt |
128 of the decryption, |
|
|
Built-in battery capacity |
40AH |
|
|
Batterycharging voltage |
DC12.6V 3A |
|
|
Power supply |
Support for dual power supply mode |
|
|
Video recorder |
SD H.264 (optional without recorders, four image splitter output, the receiver USB video) |
|
|
Display size |
15 inch |
|
|
Physical parameters |
Working Voltage |
AC220V / DC12V |
|
Temperature |
-20°C~+50°C |
|
|
Dimension |
460*375*175mm |
|
|
Weight |
10kg |
