Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST9500DBH
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Modulation: |
TDD-COFDM |
Range: |
2-8km |
Signal: |
Audio & Video |
Video Res: |
1080P |
Video Input: |
High Definition Multimedia Interface/SDI/CVBS |
Antenna: |
Dual Antenna |
Recevier: |
Receiver Monitor |
Weight: |
2.5kg |
Modulation: |
TDD-COFDM |
Range: |
2-8km |
Signal: |
Audio & Video |
Video Res: |
1080P |
Video Input: |
High Definition Multimedia Interface/SDI/CVBS |
Antenna: |
Dual Antenna |
Recevier: |
Receiver Monitor |
Weight: |
2.5kg |

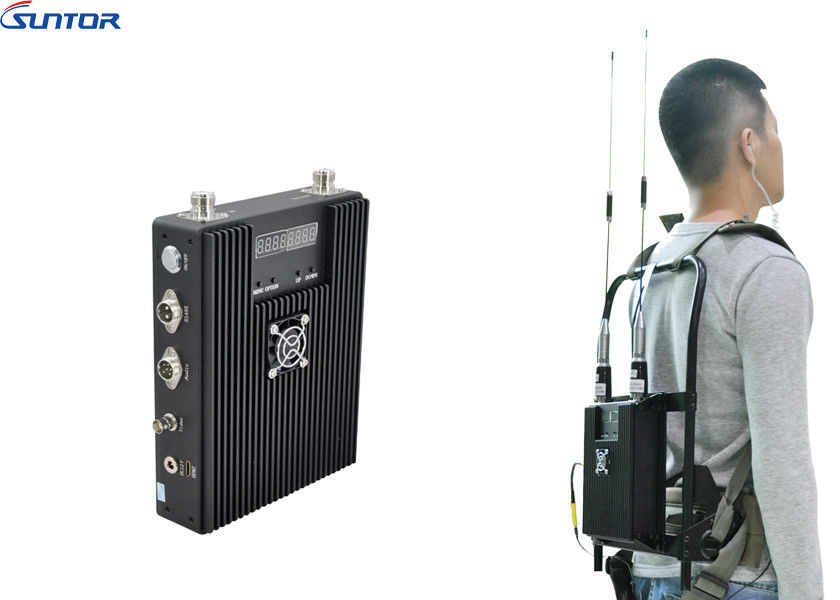

3Watts 3km NLOS Backpack HD Wireless Transmitter Communication Systems
Introduction
ST9500DBH The transmitter is with clear and stable image,intergrated design,double battery, perfect for NLOS transmission and mobile applications.
SD & HD compatible
Feature:
| Frequency | 138-4400MHz (option),but only 100MHz space for user |
| RF power | 10Watt (adjustable) |
| Power supply | DC11-14.5V/2.7A (aviation plug) |
| Modulation | COFDM 2K QPSK |
| RF Bandwidth | 2/2.5/4/8MHz(adjustable) |
| FEC | 1/2 2/3 3/4 7/8 (option) |
| Guard Interval | 1/32 1/16 1/8 1/4(option) |
| Data Encryption | AES 128/256 Bits |
| Max speed | 450km/h |
| Video input | BNC/RCA |
| Audio input | standard Aviation plug, support two-way intercome |
| Video compression format | H.264 |
| Video Resolution | standard 720P ,1280*720 |
| RF Interface | N (two aerial connectors) |
| Work environment | -40℃~70℃ |
| Transmission Distance | 10-25KM NLOS |
| Case Material Aluminum | black |
| Size | 200*130*60mm |
| Weight | 2.5kg |
