Product Details
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST10NPT
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Dimensions: |
TX: 68×48x15mm/RX: 68×48x15mm |
Weight: |
TX: 68g, RX: 68g |
Delivery: |
1-3 Working Days Delivery Time |
Free Warranty: |
12 Months For Device; 3 Months For Parts |
Work Environment: |
-40~ +85degree Centigrade |
Casing Protection: |
IP66 (dust-proof, Rain-proof) |
Frequency: |
2.4Ghz |
RF Power Output: |
1Watt |
Video Interface: |
RJ45 |
Dimensions: |
TX: 68×48x15mm/RX: 68×48x15mm |
Weight: |
TX: 68g, RX: 68g |
Delivery: |
1-3 Working Days Delivery Time |
Free Warranty: |
12 Months For Device; 3 Months For Parts |
Work Environment: |
-40~ +85degree Centigrade |
Casing Protection: |
IP66 (dust-proof, Rain-proof) |
Frequency: |
2.4Ghz |
RF Power Output: |
1Watt |
Video Interface: |
RJ45 |
10-14km Mavlink/SBUS/PPM/TTL ethernet radio data communications UAV transceiver
Introduction

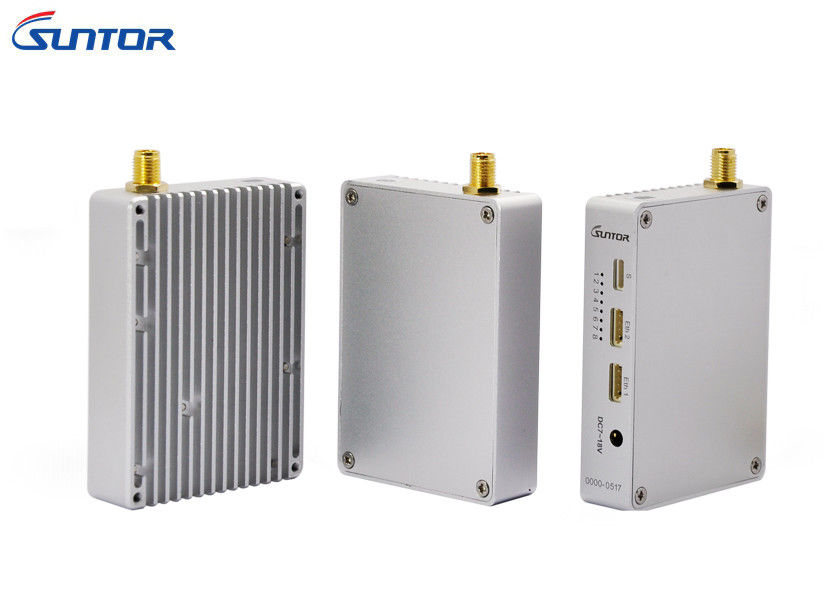

ST10NPT Drone transmitter COFDM 14km microwave video sender is a new long range wireless aerial transmitter.
TDD-COFDM wireless transmitter is with latest technologies of COFDM, no encoding Stream image to show full HD quality video.
Data and video wireless transmitter has good performance of wireless long range transmission, compact size, good heat resistance, and strong power amplifier for longer-range transmission
Long range wireless aerial transmitter has bidirectional serial data port as to transmit data and combine the RC links, Auto pilot system and video into one link. Ethernet port on aerial transmitter and receiver support the video directly output to PC. So that the video can be store and transfer online.
Drone transmitter COFDM 14km microwave video sender is encrypted with AES128/256bits, this machines performs well in fast-moving wireless transmission.
Features
Parameters
| Power supply | DC7V~18V, 4W consumption |
| Ethernet | 2*10/100BaseT, Auto-MDI/X |
| TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS | |
| Output frequency | 2.4Ghz |
| Output rf power | 1W |
| Bandwidth | 2/4/6/8MHz (adjustable) |
| Interface | 2*RJ-45 ethernet, RS232/RS485/RS422 |
| Resolution | Support Ethernet 1080P@60P |
| Encryption mode | 128bit AES(or 256bit AES) |
| Error correction mechanism | 32bit of CRC,ARQ |
| Modulation | TDD_COFDM |
| Parameter control | Through OLED control panel to modify parameters |
| Transmission Distance | 10-14km LOS on UAV |
| Working temperature | -40℃~+85℃ |
| Dimension |
TX: 68×48x15mm RX: 68×48x15mm |
| Weight | TX: 68g, RX: 68g |
