UAV COFDM Wireless Transmitter

Place of Origin Shenzhen, China
Brand Name SUNTOR
Certification FCC, CE, RoHS
Model Number ST50HPT
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Plastic Box
Delivery Time 7-15 days
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Modulation COFDM Frequency Range 2.402-2.478GHz
RF Power 2W (33dBm) Video Data Port High Definition Multimedia Interface / Ethernet / RS232
Transmission Range Air To Ground 40-70km Power Supply DC7-18 V Optional
Light Weight Tx: 208g Size 24mm×73mmx76mm
Highlight

UAV COFDM Wireless Transmitter

,

70km COFDM Wireless Transmitter

,

40km Wireless HDMI Video Transmitter

Leave a Message
Product Description

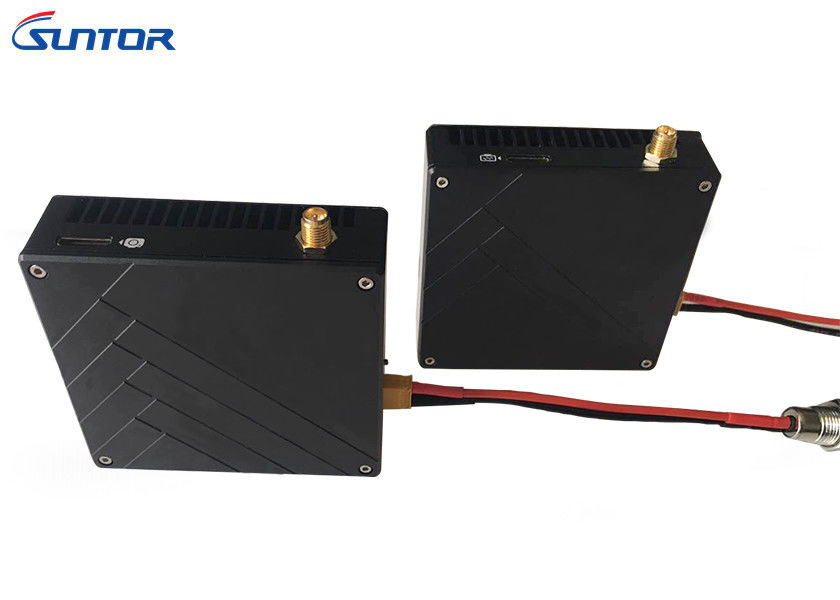

UAV COFDM Wireless Transmitter



40-70km UAV COFDM Wireless Transmitter Receiver Low Delay Long Distance



Introduction:
Such new design 1080P HD transmitter is a powerful HD transmit system, using ultra-high resolution display~Independently developed CABAC (h.264) coding&decoding technology, which can transmit good quality and stable full-hd digital video signal under the condition of high speed moving transmission in line of sight environment.



Support High Definition Multimedia Interface / ethernet two HD inputs as well support image transmission & data transmission , combined multiple radio links.



ST50HPT Specs.pdf



Features

  • Working Temperature: -40℃—+85℃
  • Support SBUS/PPM/TTL/232/485
  • Video: Video sources self-adaptive(Max 1080P), Support High Definition Multimedia Interface Input/output
  • Support Video and Duplex Data
  • Compatible with different brand flight controller and remote controller
  • 100Mbps Ethernet for option
  • Matching with our TPlayer software (low latency software decoder) to display video on PC.
Frequency 2.4GHz (2.402-2.478GHz) Adjustable
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power

ST5HPT: 400mW (Air to ground 5km)

ST11HPT: 1Watt (Air to ground 10km)

ST30HPT: 1.5Watts (Air to ground 30km)

ST50HPT: 2Watts (Air to ground 40-70km)


Frequency Bandwidth 2/8/20MHz Adjustable
Receive Sensitivity -100dbm/95dbm/90dbm
Transmitter Receiver Interface Power input interface × 1
Antenna interface × 1
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1 Software adjustment
SMA RF× 1
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Antenna 1T1R
Video Input/output Interface High Definition Multimedia Interface mini Tx/ Rx, or transform FFC to High Definition Multimedia Interface-A Rx/ Tx Support the voice function
Video Compressed Format H.264 +H.265 TS Support the bitrate output
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Start-up time < 30s
Total delay of the system 12-25ms of 1080P 60/ 720P 60 coding and decoding
Two-way function Integrate multiple radio links, SBUS/PPM/TTLS 1 pro communication module Optional
Power supply DC 12V DC7-18 V Optional
Total Power Dissipation

TX: 10Watts/RX: 7Watts

Maximum value
Temperature Range Operating temperature:-40°C ~ 85°C
Storage temperature:-55°C ~ 100°C
Indicator Light High Definition Multimedia Interface input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
High Definition Multimedia Interface High Definition Multimedia Interface mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 24mm×73mmx76mm
Net Weight Tx: 208g, Rx: 100g



Application:
Advanced Microwave Products offers high quality video and data transmission products designed for rugged drones, UAS, UAV, UGV, and applications.
