UHF Long Distance COFDM Video Transmitter Device cofdm transmitter factory military defense

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST6240CZ-SD
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Detail Information
Modulation: COFDM Frequency Range: 300MHz~4.4GHz Adjustable
Output Power: 40W Compressed Format: H.264/MPEG-2
Video Input: PAL/NTSC Resolution: 720*576, 25 Fps
High Light:

wireless video transmitter and receiver

,

audio video transmitter


Product Description

40W UHF Long Distance 80km COFDM Video Transmission Devive for Unviewable Environment



Introduction:

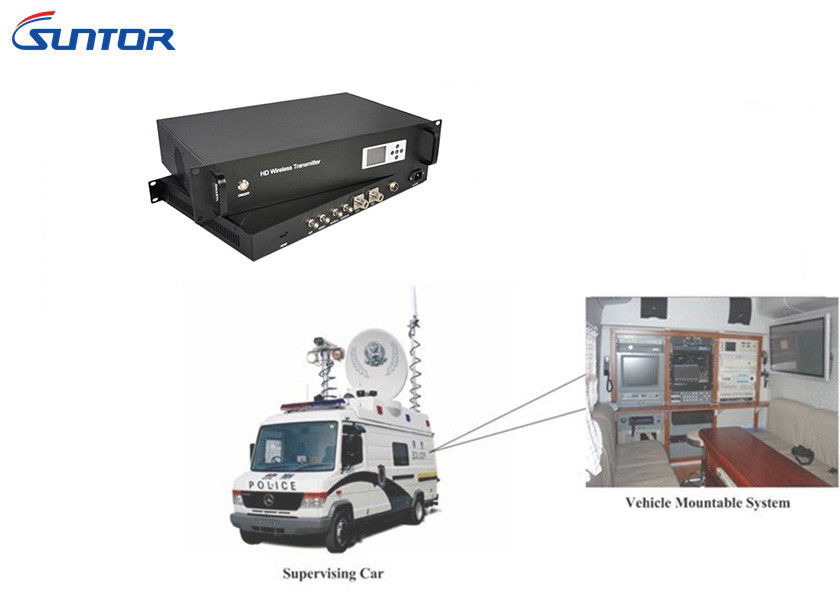

The vehicle mountable wireless video transmitter is the ideal solution for establishing rugged wireless video links in all environments including high-speed motion and urban environments. Especially, the latest technologies of COFDM modulation and MPEG-2/MPEG-4 video compression ensure high quality of NLOS (non line-of-sight) transmission. This system is high-powered and can realize longer transmission range with stable, real-time and high definition images. This product can be mounted in a car or helicopter to transmit real-time audio and video to the commanding center.



Features:

  • COFDM modulation, H.264 video compression mode
  • Built in with CVBS and BNC interfaces
  • Support left/right stereo audio input and output
  • Small in size and lightweight
  • High RF power but in strong heat resistance capacity as dual electric fans for increased cooling capacity
  • 2/2.5/4/8MHz RF bandwidth, the working frequency will be displayed on the LCD



powerful SD COFDM video audio transmitter, it can up to 10-40W RF power which support transmitting over a long distance.
Using the core technology 4th generation mobile communication COFDM modulation and low delay technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles (NLOS)
Suitable for vehicles: cars, boat - boats, cars - a building, ship-a base station, aircraft-a building/vehicle and more. High-definition moving video signal transmission, the carrier velocity greater than 450kph
Widely used in public security, armed police, fire, rescue, reconnaissance, field operations and other emergency communication system.



Transmitter parameter

RF Working frequency 300MHz~4.4GHz
Output power 40W
Modulation COFDM (64QAM, 16QAM, QPSK)
Channel bandwidth 2/2.5/4/8MHz Manually adjustable on LCD
Error correcting mode FEC@Viterbi (1/2, 2/3, 3/4)
Encryption AES 128Bit/SUNTOR Basic Scrambling
Guard Interval 1/32, 1/16, 1/8, 1/4
Code Stream 2Mbps~12Mbps
Error rate ≤10-6
Usage mode Vehicle-mounted
Audio and Video Compression format H.264(Embedded Audio)
SD Format

PAL 720 x 576

NTSC 720 x 480

SD Video Input Connectors BNC
Audio L+R In BNC
Others Power supply AC 110-230V
Size 19" 2U standard crate, 485mm×340 mm×90 mm (L×W×H)
Built-in LCD Display and Manually Adjust Parameters
Power switch ON/OFF
Weight 5kg
