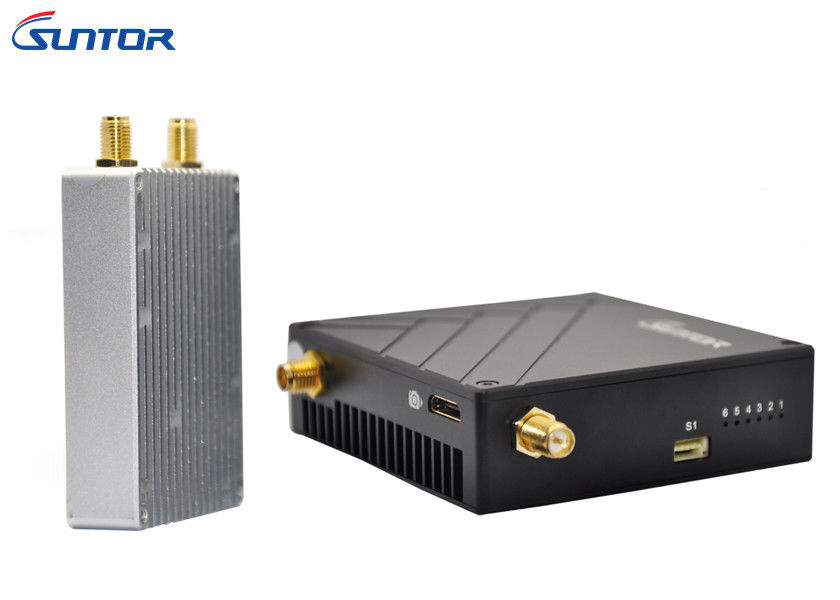

MavLink Pixhawk UAV Data Link 20km Ultra Long Range with double antenna

Basic Information
Place of Origin: Shenzhen, China
Brand Name: SUNTOR
Certification: FCC, CE, RoHS
Model Number: ST20NPT
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plastic Box
Delivery Time: 7-15 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 set/ month
Detail Information
Modulation: TDD-COFDM Frequency: 2.4GHz (2.402 - 2.478 GHz)
Air To Ground Distance: 20km Duplex Data: Support SBUS/PPM/TTL
Video Input/Output: Ethernet Weight: Tx: 146g/ Rx: 68g
High Light:

uav video link

,

uav video transmitter


Product Description

MavLink Pixhawk 20km Ultra Long Range UAV Video Data Links with double antenna



ST20NPT Specs.pdf



Description



ST20NPT is a COFDM wireless communication equipment based on military standard. It supports 2.4GHz(2. 402~2. 478 GHz) and suitable for long distance, high code stream and wireless transmitting application. The transmitting rate up to be 3-5Mbps and the farthest transmission distance is 22km air to ground.



This model has advantages of light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.



Features

  • Working temperature: -40 - +85°C
  • Support AES encryption
  • Double Ethernet Input
  • Range: air to ground 20km uav video data transmission
  • Support: 2.4GHz (2.402 - 2.478 GHz) COFDM
  • Transmitting Power: 2000mW
  • Mode: Point to Point and Point to Multi-point
  • Frequency Bandwidth: 2/4/6/8Mhz Adjustable
  • Duplex Data Transmit: Support SBUS/PPM/TTL/RS232/MAVLINK



Parameter

Frequency 2.4GHz (2.402-2.478GHz)
RF Transmitting Power 33dBm(air to ground 18-22km)
Frequency Bandwidth 2/4/6/8MHz
Antenna 1T1R
Adjustment mode of bit rate Software adjustment
Communication Channel Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Mode point to point / point to multipoint
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Transmission Rate 3-5Mbps
Sensitivity -100dbm@4Mhz, -95dbm@8Mhz
Power DC 7-18V
Power Consumption TX: 6Watts
RX: 6Watts
Temperature Operating temperature: -40 - +85°C
Storage temperature: -55 - +100°C
Interface Power input interface × 1
Antenna interface × 2
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1(TX), Ethernet Port x2(RX)
Indicator RJ45 input/output indicator light
Transmitting and receiving indicator light
Transmitting and receiving indicator light
Power light
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size TX: 76*73*24mm/RX: 68×48x15mm
Net Weight TX: 146g
Rx: 68g
