High Definition 5KM Mini Video Transmitter Multimedia Interface Drone Links

Basic Information
Place of Origin: Shenzhen
Brand Name: Suntor
Model Number: ST5HPT
Minimum Order Quantity: 1 Set
Packaging Details: box package
Delivery Time: 3-5
Payment Terms: T/T, Western Union
Detail Information
Material: Aluminum Color: Silver
Port: 4
High Light:

5KM Mini Video Transmitter

,

4MHz Mini Video Transmitter

,

5KM Drone Video Transmitter


Product Description

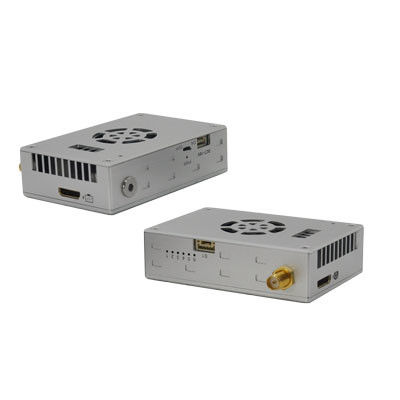

High Definition 5KM Mini Video Transmitter Multimedia Interface Drone Links



Over the recent years,UAV business developing rapidly, more and more fields come to drone applications, include military, agriculture, surveying, photography, research, law enforcement, transportation, communications, etc. It also gave birth to the development of the application technology of drone peripheral parts at the same time.



The devices signal quality and transmission distance are more and more important. The UAV video data link is the core of drone to process and transmit the video data. Many UAV applications require the transmission distance more than dozens of kilometers, can be transmit the High Definition Multimedia Interface&Ethernet and control data, to realize the goal of far distance transmit HD video and data from air to ground.



High Definition 5KM Mini Video Transmitter Multimedia Interface Drone Links 0High Definition 5KM Mini Video Transmitter Multimedia Interface Drone Links 1

Suntor wireless video data devices adopt TDD-COFDM wireless communication technology, provide the low delay long range and multi interfaces bidirectional data links for customers.



According to actual needs to select different frequencies and interfaces. A variety of antennas can be to choose, compact omni antennas or fiber-glass epoxy antennas should be mounted on board of the drone. To use the panel directional antenna on ground station can increase the transmission distance.



RF power 27dBm
Frequency

2402~2482MHz

Encryption

AES128

Latency

30ms

Bandwidth

4MHz

Transmission Rate

3-5Mbps

Antenna

1Tx, 1Rx

Power supply

DC 7- 18V

Receive Sensitivity

-100dbm@4Mhz,

Dimension

76×48×20mm





Suntor UAV video data devices structure compact, weight light, power adjustable, encryption safety, transmission stable and superior performance, as well as transmission of HD video and control data, play an indispensable role in UAV field.
